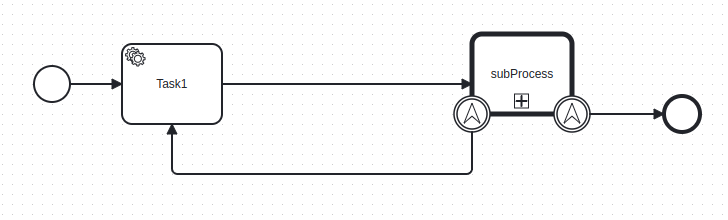

Hello. I want to test my main schema using junit5 and spring boot (job-executor is disabled). But I can’t to mock CallActivivty element, which execute another schema. I have this schema:
schema
<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:camunda="http://camunda.org/schema/1.0/bpmn" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:modeler="http://camunda.org/schema/modeler/1.0" id="Definitions_0guls9w" targetNamespace="http://bpmn.io/schema/bpmn" exporter="Camunda Modeler" exporterVersion="5.25.0" modeler:executionPlatform="Camunda Platform" modeler:executionPlatformVersion="7.21.0">
<bpmn:process id="MainProcess" isExecutable="true">
<bpmn:startEvent id="startProcess">
<bpmn:outgoing>Flow_0dcb0w0</bpmn:outgoing>
</bpmn:startEvent>
<bpmn:serviceTask id="task1" name="Task1" camunda:asyncBefore="true" camunda:delegateExpression="${task1}">
<bpmn:extensionElements>
<camunda:failedJobRetryTimeCycle />
</bpmn:extensionElements>
<bpmn:incoming>Flow_0dcb0w0</bpmn:incoming>
<bpmn:incoming>Flow_0hg9lrn</bpmn:incoming>
<bpmn:outgoing>Flow_0qjg4o5</bpmn:outgoing>
</bpmn:serviceTask>
<bpmn:callActivity id="subProcessCallActivity" name="subProcess" camunda:asyncBefore="true" calledElement="subprocess">
<bpmn:extensionElements>
<camunda:failedJobRetryTimeCycle />
</bpmn:extensionElements>
<bpmn:incoming>Flow_0qjg4o5</bpmn:incoming>
</bpmn:callActivity>
<bpmn:endEvent id="Event_08w2bjr">
<bpmn:incoming>Flow_1xkq4pb</bpmn:incoming>
</bpmn:endEvent>
<bpmn:boundaryEvent id="refundSuccessEvent" attachedToRef="subProcessCallActivity">
<bpmn:outgoing>Flow_1xkq4pb</bpmn:outgoing>
<bpmn:escalationEventDefinition id="EscalationEventDefinition_1afbwqf" escalationRef="Escalation_3v3o4na" />
</bpmn:boundaryEvent>
<bpmn:boundaryEvent id="refundFailEvent" attachedToRef="subProcessCallActivity">
<bpmn:outgoing>Flow_0hg9lrn</bpmn:outgoing>
<bpmn:escalationEventDefinition id="EscalationEventDefinition_0jhsiho" escalationRef="Escalation_0dl03mh" />
</bpmn:boundaryEvent>
<bpmn:sequenceFlow id="Flow_0dcb0w0" sourceRef="startProcess" targetRef="task1" />
<bpmn:sequenceFlow id="Flow_0hg9lrn" sourceRef="refundFailEvent" targetRef="task1" />
<bpmn:sequenceFlow id="Flow_0qjg4o5" sourceRef="task1" targetRef="subProcessCallActivity" />
<bpmn:sequenceFlow id="Flow_1xkq4pb" sourceRef="refundSuccessEvent" targetRef="Event_08w2bjr" />
</bpmn:process>
<bpmn:escalation id="Escalation_3v3o4na" name="SUCCESS" escalationCode="success" />
<bpmn:escalation id="Escalation_0dl03mh" name="FAIL" escalationCode="fail" />
<bpmndi:BPMNDiagram id="BPMNDiagram_1">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="MainProcess">
<bpmndi:BPMNShape id="BPMNShape_0eyuhxl" bpmnElement="startProcess">
<dc:Bounds x="182" y="112" width="36" height="36" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Activity_186bj94_di" bpmnElement="task1">
<dc:Bounds x="270" y="90" width="100" height="80" />
<bpmndi:BPMNLabel />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Activity_02j87xo_di" bpmnElement="subProcessCallActivity">
<dc:Bounds x="620" y="80" width="100" height="80" />
<bpmndi:BPMNLabel />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Event_08w2bjr_di" bpmnElement="Event_08w2bjr">
<dc:Bounds x="812" y="142" width="36" height="36" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Event_0s3p7dj_di" bpmnElement="refundSuccessEvent">
<dc:Bounds x="702" y="142" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="699" y="308" width="41" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Event_1pnwqom_di" bpmnElement="refundFailEvent">
<dc:Bounds x="602" y="142" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="540" y="270" width="15" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="Flow_0dcb0w0_di" bpmnElement="Flow_0dcb0w0">
<di:waypoint x="218" y="130" />
<di:waypoint x="270" y="130" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_0hg9lrn_di" bpmnElement="Flow_0hg9lrn">
<di:waypoint x="620" y="178" />
<di:waypoint x="620" y="220" />
<di:waypoint x="320" y="220" />
<di:waypoint x="320" y="170" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_0qjg4o5_di" bpmnElement="Flow_0qjg4o5">
<di:waypoint x="370" y="130" />
<di:waypoint x="620" y="130" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_1xkq4pb_di" bpmnElement="Flow_1xkq4pb">
<di:waypoint x="738" y="160" />
<di:waypoint x="812" y="160" />
</bpmndi:BPMNEdge>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn:definitions>
How can I test case, run test before callActivivty and check if callActivity throw escalation success code end schema if fail check isWaitingAt(task1)
I have this code and it works, but brake my next test class. And I want to mock CallActivity only for this test.
@Test
fun testFailCase() {
ProcessExpressions.registerCallActivityMock("subprocess")
.onExecutionThrowEscalation("fail")
.deploy(repositoryService) // in this case redeploing is taking place my second schema, and after that separated test class for that schema is failed
val processInstance = runtimeService
.createProcessInstanceByKey("MainProcess")
.startBeforeActivity("subProcessCallActivity")
.execute()
.also { assertThat(it).isStarted }
assertThat(processInstance).isWaitingAt("task1")
}
When I use:
@Test
fun testFailCase() {
val mockActivity = CallActivityMock("subprocess")
.onExecutionThrowEscalation("fail")
Mocks.register("subProcessCallActivity", mockActivity)
val processInstance = runtimeService
.createProcessInstanceByKey("MainProcess")
.startBeforeActivity("subProcessCallActivity")
.execute()
.also { assertThat(it).isStarted }
assertThat(processInstance).isWaitingAt("subProcessCallActivity")
// and I don't know how to execute callActivity in my test, this code does not work, especially if no subprocess deployed schema: no processes deployed with key 'subprocessRefund' and tenant-id 'null': processDefinition is null
val job = managementService.createJobQuery().processInstanceId(processInstance.id).singleResult()
managementService.executeJob(job.id)
