org.camunda.commons.utils.cache.ConcurrentLruCache

I am trying to build a spring boot application with embedded camunda. I followed the Getting started with Camunda and Spring Boot tutorial by Nial at Get Started With Camunda and Spring boot - YouTube. In my process, I am trying to use mail-send connector to send mails via a service task. I am getting below exception when trying to run the app. Should I explicitly add any other dependency for ConcurrentLruCache Class. Did I miss anything? Attached my pom.xml.
org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name ‘org.camunda.bpm.engine.spring.SpringProcessEngineServicesConfiguration’: Unsatisfied dependency expressed through field ‘processEngine’; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name ‘processEngineFactoryBean’: FactoryBean threw exception on object creation; nested exception is java.lang.NoClassDefFoundError: org/camunda/commons/utils/cache/ConcurrentLruCache
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:643) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:130) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor.postProcessProperties(AutowiredAnnotationBeanPostProcessor.java:399) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.populateBean(AbstractAutowireCapableBeanFactory.java:1422) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:594) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:517) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:323) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:321) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:879) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:878) ~[spring-context-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:550) ~[spring-context-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:141) ~[spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:747) [spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:397) [spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:315) [spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1226) [spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at org.springframework.boot.SpringApplication.run(SpringApplication.java:1215) [spring-boot-2.2.5.RELEASE.jar:2.2.5.RELEASE]
at com.infobelt.regent.poc.Application.main(Application.java:11) [classes/:na]
Caused by: org.springframework.beans.factory.BeanCreationException: Error creating bean with name ‘processEngineFactoryBean’: FactoryBean threw exception on object creation; nested exception is java.lang.NoClassDefFoundError: org/camunda/commons/utils/cache/ConcurrentLruCache
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:178) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.getObjectFromFactoryBean(FactoryBeanRegistrySupport.java:101) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.getObjectForBeanInstance(AbstractBeanFactory.java:1818) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.getObjectForBeanInstance(AbstractAutowireCapableBeanFactory.java:1266) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:260) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:202) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.config.DependencyDescriptor.resolveCandidate(DependencyDescriptor.java:276) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.addCandidateEntry(DefaultListableBeanFactory.java:1510) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.findAutowireCandidates(DefaultListableBeanFactory.java:1467) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.doResolveDependency(DefaultListableBeanFactory.java:1250) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.support.DefaultListableBeanFactory.resolveDependency(DefaultListableBeanFactory.java:1207) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
at org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:640) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
… 19 common frames omitted
Caused by: java.lang.NoClassDefFoundError: org/camunda/commons/utils/cache/ConcurrentLruCache
at org.camunda.bpm.engine.impl.persistence.deploy.cache.DefaultCacheFactory.createCache(DefaultCacheFactory.java:32) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.persistence.deploy.cache.ResourceDefinitionCache.(ResourceDefinitionCache.java:39) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.persistence.deploy.cache.ProcessDefinitionCache.(ProcessDefinitionCache.java:32) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.persistence.deploy.cache.DeploymentCache.(DeploymentCache.java:56) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.cfg.ProcessEngineConfigurationImpl.initDeployers(ProcessEngineConfigurationImpl.java:1828) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.cfg.ProcessEngineConfigurationImpl.init(ProcessEngineConfigurationImpl.java:901) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.impl.cfg.ProcessEngineConfigurationImpl.buildProcessEngine(ProcessEngineConfigurationImpl.java:870) ~[camunda-engine-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.spring.SpringTransactionsProcessEngineConfiguration.buildProcessEngine(SpringTransactionsProcessEngineConfiguration.java:63) ~[camunda-engine-spring-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.spring.ProcessEngineFactoryBean.getObject(ProcessEngineFactoryBean.java:55) ~[camunda-engine-spring-7.13.0.jar:7.13.0]
at org.camunda.bpm.engine.spring.ProcessEngineFactoryBean.getObject(ProcessEngineFactoryBean.java:34) ~[camunda-engine-spring-7.13.0.jar:7.13.0]
at org.springframework.beans.factory.support.FactoryBeanRegistrySupport.doGetObjectFromFactoryBean(FactoryBeanRegistrySupport.java:171) ~[spring-beans-5.2.4.RELEASE.jar:5.2.4.RELEASE]
… 30 common frames omitted
Caused by: java.lang.ClassNotFoundException: org.camunda.commons.utils.cache.ConcurrentLruCache
at java.net.URLClassLoader.findClass(URLClassLoader.java:382) ~[na:1.8.0_261]
at java.lang.ClassLoader.loadClass(ClassLoader.java:418) ~[na:1.8.0_261]
at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:355) ~[na:1.8.0_261]
at java.lang.ClassLoader.loadClass(ClassLoader.java:351) ~[na:1.8.0_261]
… 41 common frames omitted

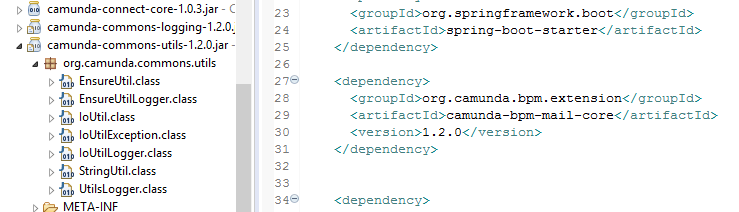

pom.xml (1.9 KB)

@Asritha ConcurrentLruCache class present in camunda-commons-utils-1.8.2.jar which is an transitive dependency of camunda-bpm-mail-core. As per your pom.xml, camunda-bpm-mail-core version 1.2.0 doesn’t have the class ConcurrentLruCache, so in runtime it throws NoClassDefFoundError ( ClassLoader instance tries to load the definition of a class and no definition of the class could be found)

<dependency>
    <groupId>org.camunda.bpm.extension</groupId>
    <artifactId>camunda-bpm-mail-core</artifactId>
    <version>1.2.0</version>
</dependency>


Solution:

Update the camunda-bpm-mail-core version to 1.3.0 in your pom.xml like below it will solve the issue.

<dependency>
    <groupId>org.camunda.bpm.extension</groupId>
    <artifactId>camunda-bpm-mail-core</artifactId>
    <version>1.3.0</version>
</dependency>


To identify the transitive dependency in maven project:

$ mvn dependency:tree


1 Like

@Asritha It’s always better to maintain the required and compatible versions of dependencies to be used in the projects.

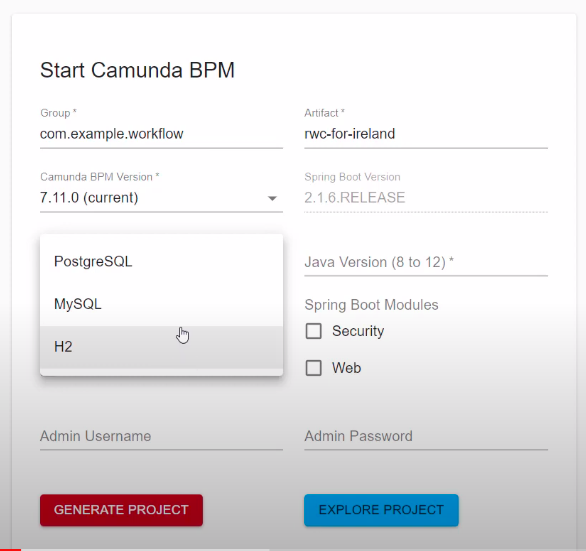

In @Niall tutorial the camunda version is 7.11 and in that example it doesn’t have camunda bpm mail core dependency.

1 Like
