Add a task in already running BPMN process in Camunda 8

[mehak.lakhanpal]

How we can add task at the end while executing BPMN process

[Alex_Voloshyn]

Hi @mehak.lakhanpal
Could you please explain your business case in more detail?

Regards,
Alex

[mehak.lakhanpal]

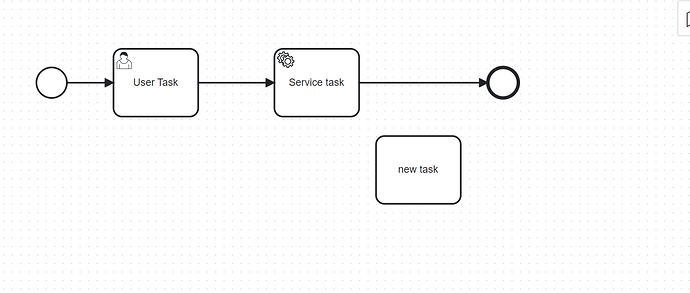

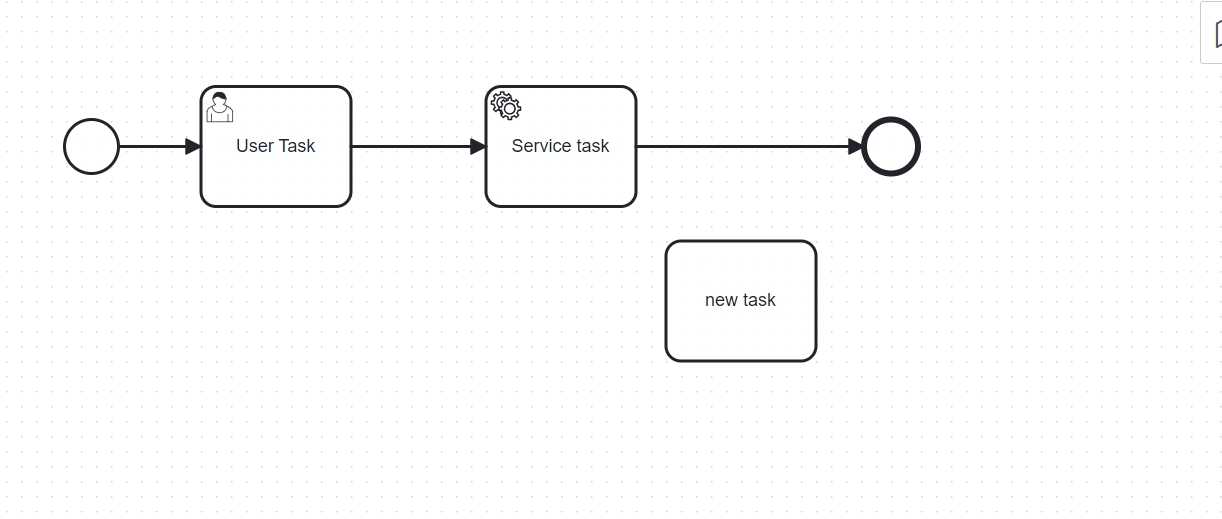

Let’s say from the above diagram , there is currently two tasks user task and another is service task. While executing this bpmn diagram using Java code. I need to add one more task which is new task at the end of this process. How can i achieve this in Camunda 8?

[Alex_Voloshyn]

I do not think it’s possible this way. Why not add that “new task” to the process and not execute it if some business conditions are not satisfied?

[Alex_Voloshyn]

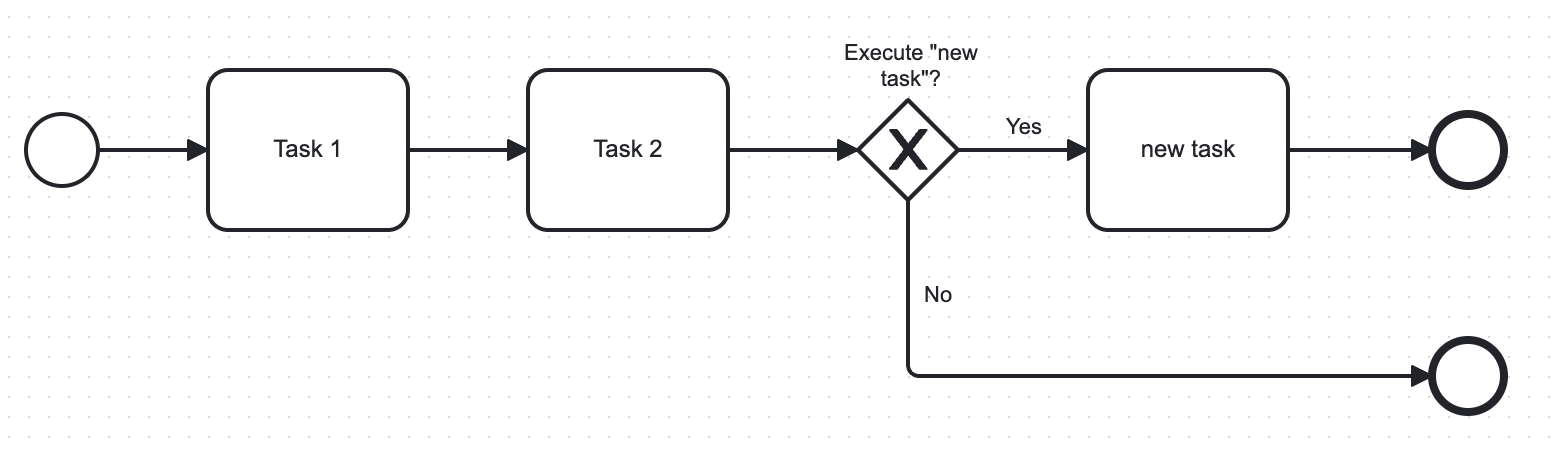

I mean something like the following:

[mehak.lakhanpal]

This is possible only , If we know about the new task beforehand, then i can use the condition. As new task is not defined while creating this bpmn diagram, so that’s why i need to add it to the end using java code

[GotnOGuts]

@mehak.lakhanpal

need to add it to the end using java code

This is likely not possible with Java.

Steps to accomplish what you want to do:

1. Update the BPMN Process with new task
2. Publish new BPMN Process
3. Migrate Process Instances to new BPMN Process Version
