Camunda 8 connector does not execute

Michal_Stefaniuk · February 16, 2023, 4:01pm

Hey guys, quick question.

I got my connector for C8 implemented, the template is deployed in the cluster, I’m running my connector as a part of a local zeebee worker.

As I run a process I can see that a connection works fine

16:43:03.002 [pool-2-thread-1] INFO io.camunda.connector.runtime.util.outbound.ConnectorJobHandler - Received job 2251799824182831
16:43:03.008 [grpc-nio-worker-ELG-1-4] DEBUG io.grpc.netty.NettyClientHandler - [id: 0x258fec34, L:/192.168.30.155:55811 - R:e5a103ce-698c-4933-b585-bf2565c262ed.bru-2.zeebe.camunda.io/34.102.176.229:443] INBOUND HEADERS: streamId=9 headers=GrpcHttp2ResponseHeaders[grpc-status: 0] padding=0 endStream=true
16:43:03.009 [grpc-default-executor-0] DEBUG io.camunda.zeebe.client.job.poller - Activated 1 jobs for worker csfservice and job type io.camunda:csfservice-api:1

but the process stops and the function public Object execute(OutboundConnectorContext context) is never called.

Any tips?

cpbpm · February 16, 2023, 4:24pm

Did you try enabling logs to see what is causing the issue.

Michal_Stefaniuk · February 16, 2023, 4:30pm

Yes, the stacktrace does not say much

17:29:18.309 [grpc-default-executor-0] DEBUG io.camunda.zeebe.client.job.poller - Activated 1 jobs for worker csfservice and job type io.camunda:csfservice-api:1
17:29:18.309 [pool-2-thread-1] INFO io.camunda.connector.runtime.util.outbound.ConnectorJobHandler - Received job 2251799824186822
17:29:18.309 [pool-2-thread-1] DEBUG io.camunda.connector.runtime.util.outbound.ConnectorJobHandler - Exception while processing job 2251799824186822, error: {}
java.util.NoSuchElementException: null
	at java.base/java.util.ServiceLoader$2.next(ServiceLoader.java:1318)
	at java.base/java.util.ServiceLoader$2.next(ServiceLoader.java:1306)
	at java.base/java.util.ServiceLoader$3.next(ServiceLoader.java:1403)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.loadOrCreateSecretProvider(ConnectorJobHandler.java:112)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.getSecretProvider(ConnectorJobHandler.java:104)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.handle(ConnectorJobHandler.java:65)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.executeJob(JobRunnableFactory.java:44)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.lambda$create$0(JobRunnableFactory.java:39)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:833)
17:29:18.310 [pool-2-thread-1] ERROR io.camunda.connector.runtime.util.outbound.ConnectorJobHandler - Exception while processing job 2251799824186822, error: {}
java.util.NoSuchElementException: null
	at java.base/java.util.ServiceLoader$2.next(ServiceLoader.java:1318)
	at java.base/java.util.ServiceLoader$2.next(ServiceLoader.java:1306)
	at java.base/java.util.ServiceLoader$3.next(ServiceLoader.java:1403)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.loadOrCreateSecretProvider(ConnectorJobHandler.java:112)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.getSecretProvider(ConnectorJobHandler.java:104)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.handle(ConnectorJobHandler.java:65)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.executeJob(JobRunnableFactory.java:44)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.lambda$create$0(JobRunnableFactory.java:39)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:833)
17:29:18.310 [pool-2-thread-1] ERROR io.camunda.connector.runtime.util.outbound.ConnectorJobHandler - Exception while processing job 2251799824186822, error: {}
java.lang.NullPointerException: null
	at io.camunda.zeebe.gateway.protocol.GatewayOuterClass$FailJobRequest$Builder.setErrorMessage(GatewayOuterClass.java:21983)
	at io.camunda.zeebe.client.impl.command.FailJobCommandImpl.errorMessage(FailJobCommandImpl.java:67)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.failJob(ConnectorJobHandler.java:128)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.lambda$handle$1(ConnectorJobHandler.java:89)
	at java.base/java.util.Optional.ifPresentOrElse(Optional.java:198)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.handle(ConnectorJobHandler.java:77)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.executeJob(JobRunnableFactory.java:44)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.lambda$create$0(JobRunnableFactory.java:39)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:833)
17:29:18.310 [pool-2-thread-1] WARN io.camunda.zeebe.client.job.worker - Worker csfservice failed to handle job with key 2251799824186822 of type io.camunda:csfservice-api:1, sending fail command to broker
java.lang.NullPointerException: null
	at io.camunda.zeebe.gateway.protocol.GatewayOuterClass$FailJobRequest$Builder.setErrorMessage(GatewayOuterClass.java:21983)
	at io.camunda.zeebe.client.impl.command.FailJobCommandImpl.errorMessage(FailJobCommandImpl.java:67)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.failJob(ConnectorJobHandler.java:128)
	at io.camunda.connector.runtime.util.outbound.ConnectorJobHandler.handle(ConnectorJobHandler.java:94)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.executeJob(JobRunnableFactory.java:44)
	at io.camunda.zeebe.client.impl.worker.JobRunnableFactory.lambda$create$0(JobRunnableFactory.java:39)
	at java.base/java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:539)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:304)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:833)

cpbpm · February 16, 2023, 4:32pm

Increase the log level to Debug.

curl ‘http://localhost:9600/actuator/loggers/io.camunda.zeebe’ -i -X POST -H ‘Content-Type: application/json’ -d ‘{“configuredLevel”:“debug”}’

Michal_Stefaniuk · February 23, 2023, 9:28am

Found the issue. I’m not sure if it is a bug in the Camunda code, but it might be.

I wrapped my connector in a Zeebe client and without passing a SecretProvider explicitly, exception was thrown as no secret provider was found. I think If you don’t pass it, then it should be provided by default. Let me get into the details.

If I go for something like this then it works:

public void runWorker(ZeebeClient client) {
        client.newWorker()
                .jobType(CONFIG.jobType())
                .handler(new ConnectorJobHandler(new MyFunction(), new SecretProvider() {
                    @Override
                    public String getSecret(String s) {
                        return "some secret";
                    }
                }))
                .name(CONFIG.workerName())
                .open();
    }

but without passing a SecretProvider() like this:

    public void runWorker(ZeebeClient client) {
        client.newWorker()
                .jobType(CONFIG.jobType())
                .handler(new ConnectorJobHandler(new MyFunction()))
                .name(CONFIG.workerName())
                .open();
    }

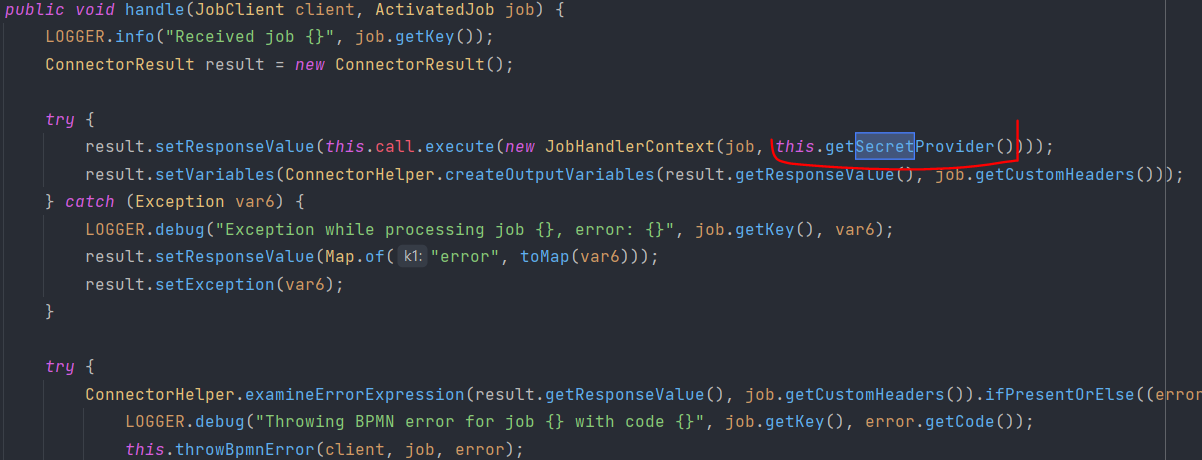

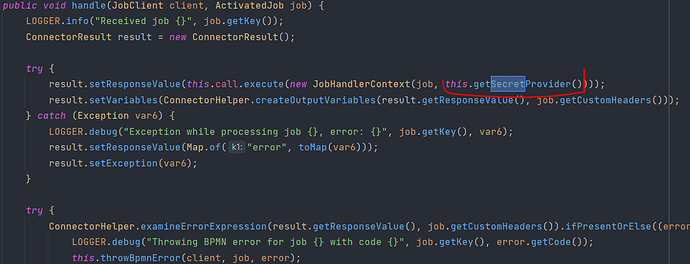

it does not work. Here is the code that will throw the exception (ConnectorJobHandler:: line 42):
