Hello,
we only use camuda modeler ( 5.39 / latest version).
We have some bpnm flows which we want to refrenece in different flows.
Any way how to link a bpnm flow (file) as a sub process in an BPNM flow?

Greest

2

Have you considered using Call Activity?

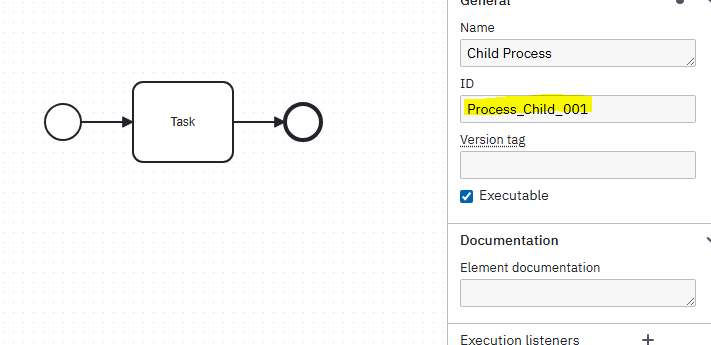

Child Process:

image711Ă—345 10.1 KB

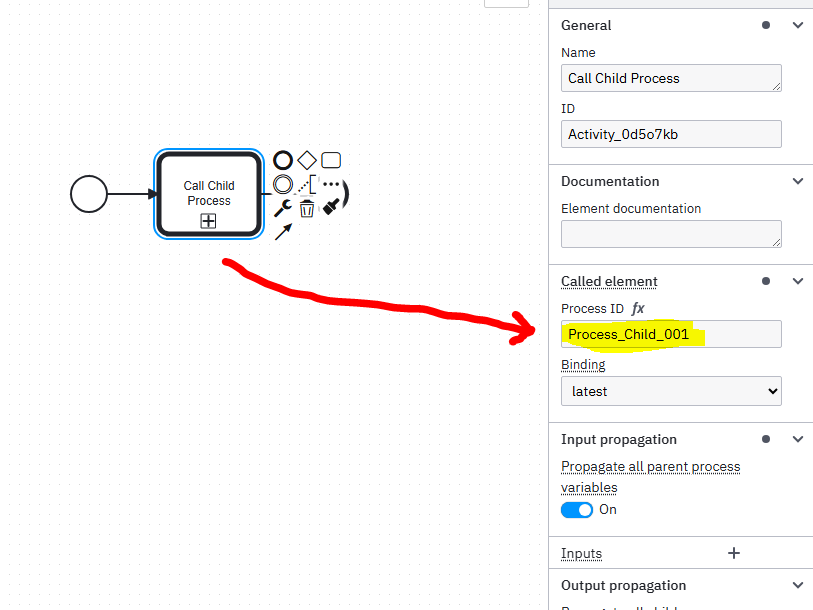

Parent Process invoking Child Process:

image813Ă—610 22 KB

1 Like
3

Hi,
but is this working when you only use the modeler to design?

  • save one bpnm as “ Process Child” in a file

-linke this file in the father bpnm fllow ( file)

thanks

P

4

Files don’t need to be linked, each process can live in its own bpmn file.

The Process ID is the value linking them together.

As long as both Parent and Child are deployed, everything will work out well.
