Defining the values in the XOR Gateway

Camunda 8 Topics
1

Hello, I have a question about Forms. You can select categories in Forms, right? I have an issue when there are two options to choose from. How do I set this up in an XOR gateway? Normally, you would use key-value pairs, but when you have multiple values in categories, I wanted to ask how to set that up.

2

They’re still key value pairs, but the key will link to an array like this

{"itemls" : ["item1","item2", "..."]

3

For example, one can choose two things: a car or a bicycle. How would I define the nodes so that the user who selects the car goes to the corresponding car-related task?

4

Can you show me the model to help me understand what you mean.

5

example

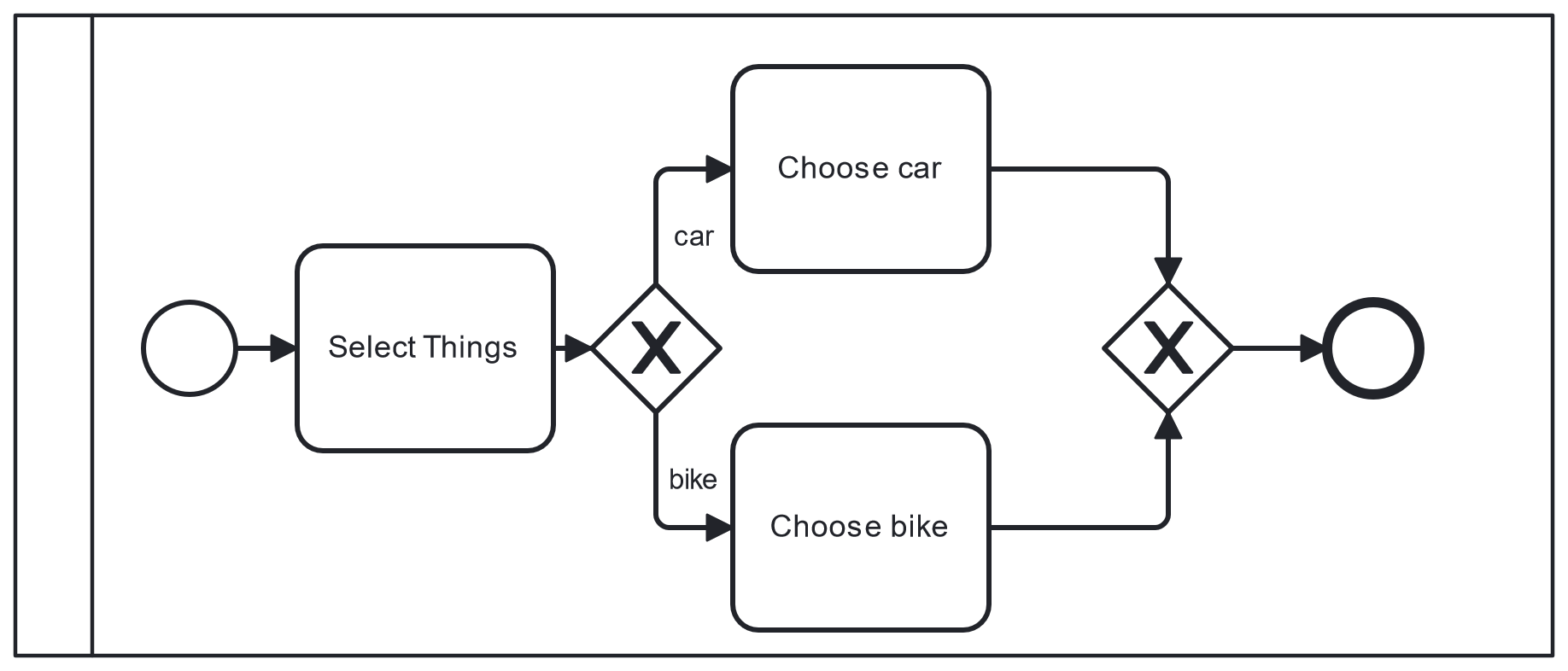

example1836×786 31.7 KB

In the first task, we have a field where a user can choose between “car” or “bike.” In the form, it would be a select field with two options.

6

Since it’s an XOR gateway it could only ever go one way or the other.
If you use an inclusive gateway you could check if the list contains a bike on one side and a car in the other.
You do this with FEEL easily enough.

7

I didn’t realize that the select variable in the forms is a list. Initially, I thought I could set the field variable equal to the value variable, but that seems to be incorrect. How can I solve this?

8

A question, what would be the right solution in this case? Unfortunately, I’m stuck and don’t know how to proceed."

9

Hello, a question: I’ve set it up so that you can’t write something like ‘field_value = “value1_abc”’ in the XOR gateway because it’s seen as an error. How can I fix this issue?

10

Whats the error exactly?

11

When I am in the playmode I get this error EXTRACT_VALUE_ERROR failed to evaluate expression ‘value_abc’: no variable found for name ‘value_abc’

12

how exactly do you create the variable that the XOR gateway is testing?
Can you upload your model.

13

Hello, I have now set it up so that you can decide in Task A whether to go to Task B or C, but I don’t know how to write the conditions on the edges.
xor.bpmn (6.8 KB)

14

Your variable is called field_task and it has two potential values value1 or value2

In the docs you can see how it’s explained how to check if variables match specific values

15

I see. The solution would be field_task.value1 and field_task.value2. Am I correct?

16

I have read the documentation, but the problem is that it didn’t work with field_Task.value1. I then tried to solve it using the get value function, but neither get value(field_Task, value1) nor get value(field_Task, "value1") worked. Did I do something wrong?

17

Have you tried field_task = "value1"

1 Like
18

It works thank you so much.

1 Like
