Deploy with Camunda Modeler, activated multitenancy

aylao · November 27, 2023, 12:30am

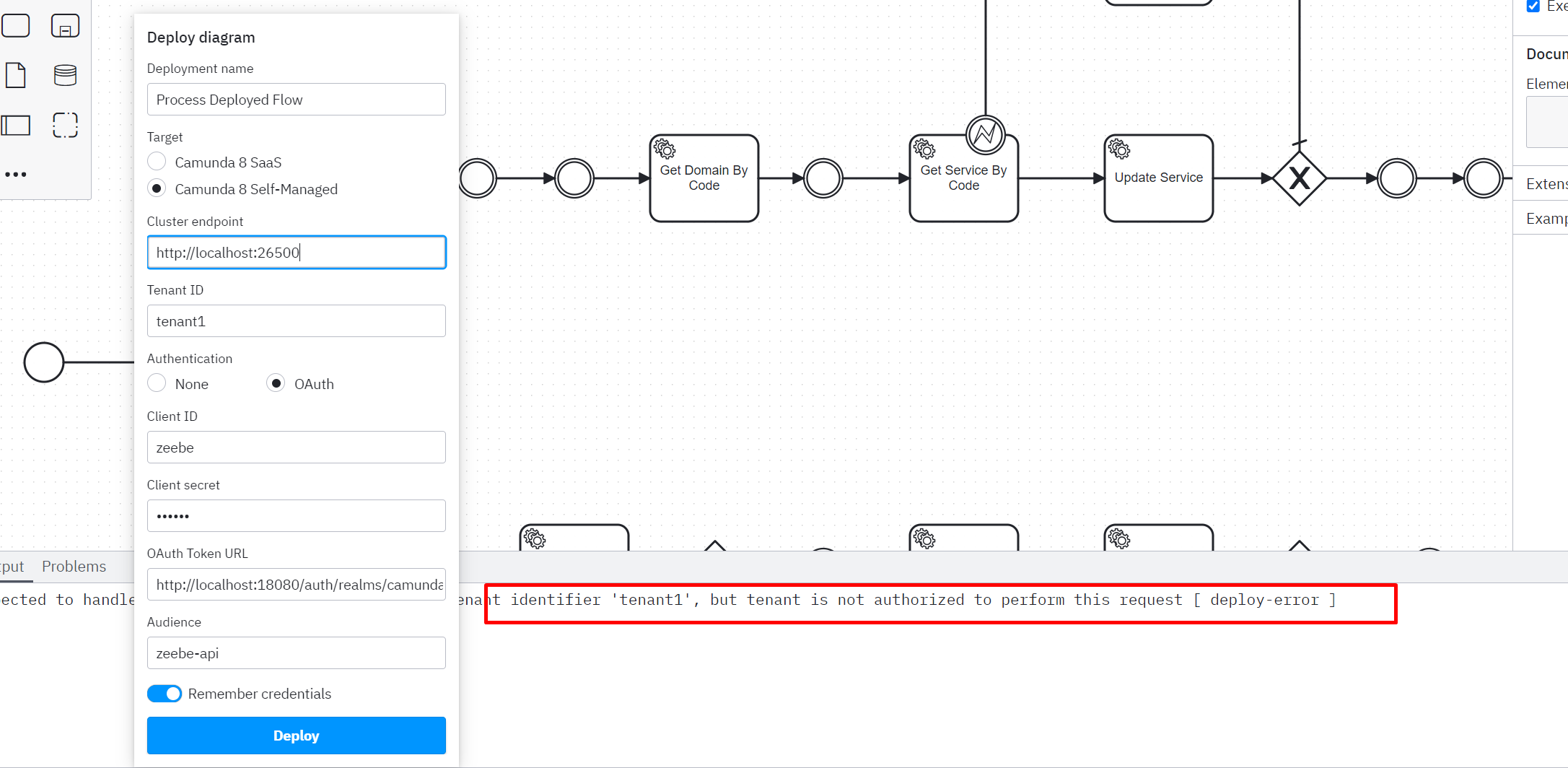

In my locale, Enabled to multitenancy but I didnt deploy for tenant with Desktop Camunda Modeler.

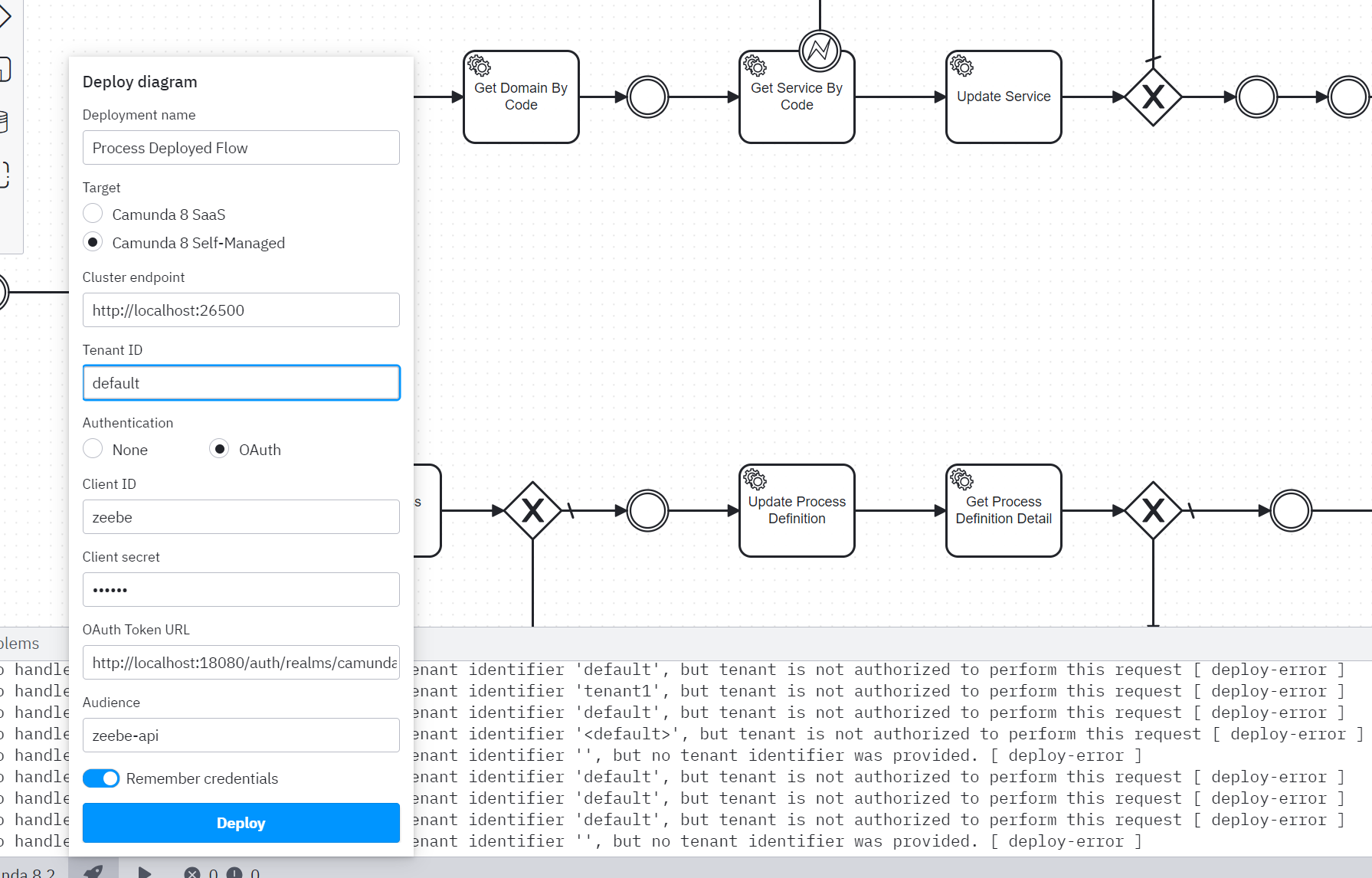

Tenant Id No matter what I type, I get an error

Is it not possible to deploy with modeler?

nathan.loding · November 27, 2023, 9:18pm

Hi @aylao, welcome to the forums! The Tenant ID “default” is not valid; in your first screenshot, you can see the two available IDs of “” and “tenant1”. Based on the error received (“tenant is not authorized to perform this request”), I suspect you may need to go into Identity and assign the application you created (with the Client ID “zeebe”) to the tenant you want to deploy to.

aylao · November 28, 2023, 8:29am

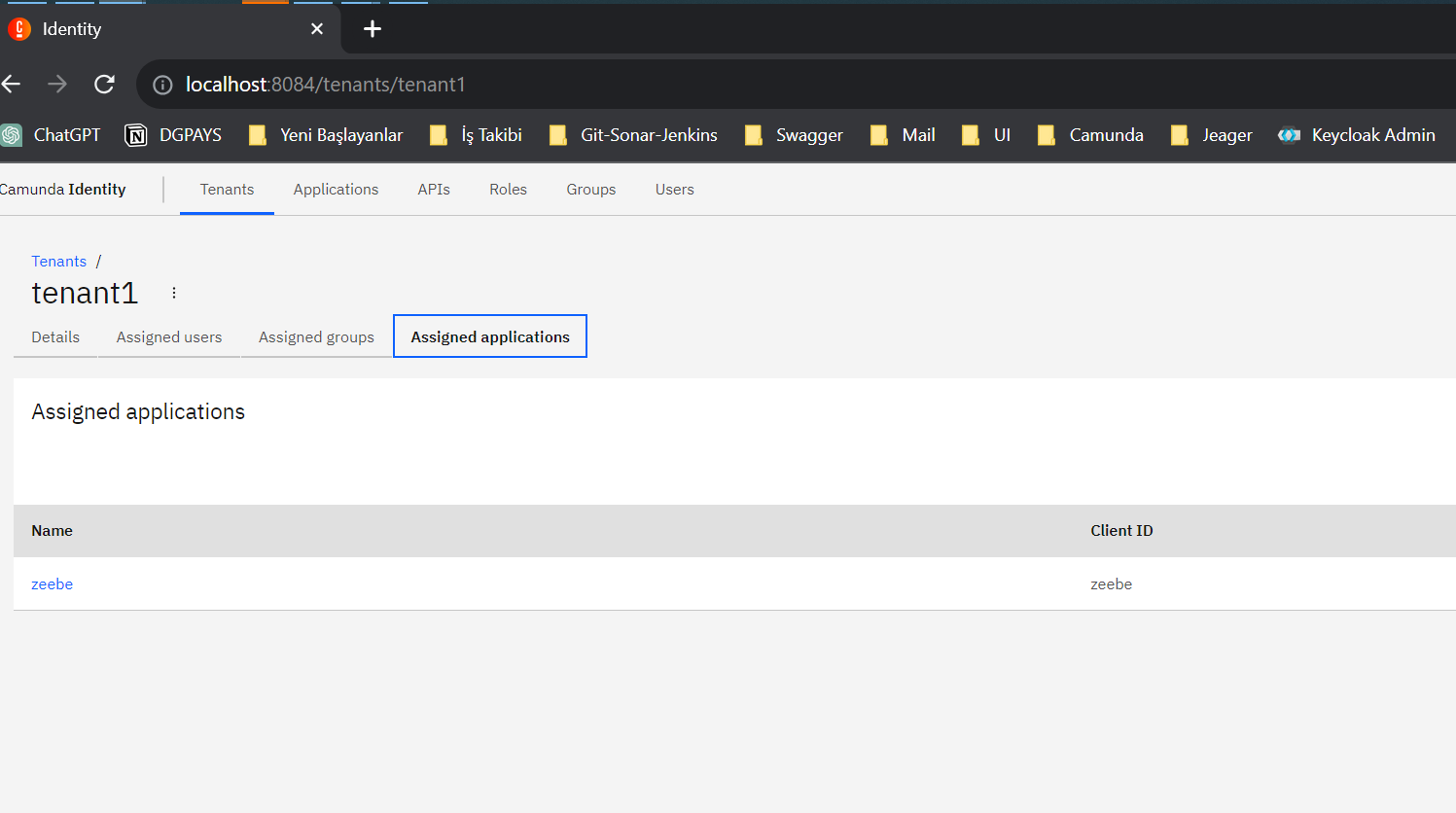

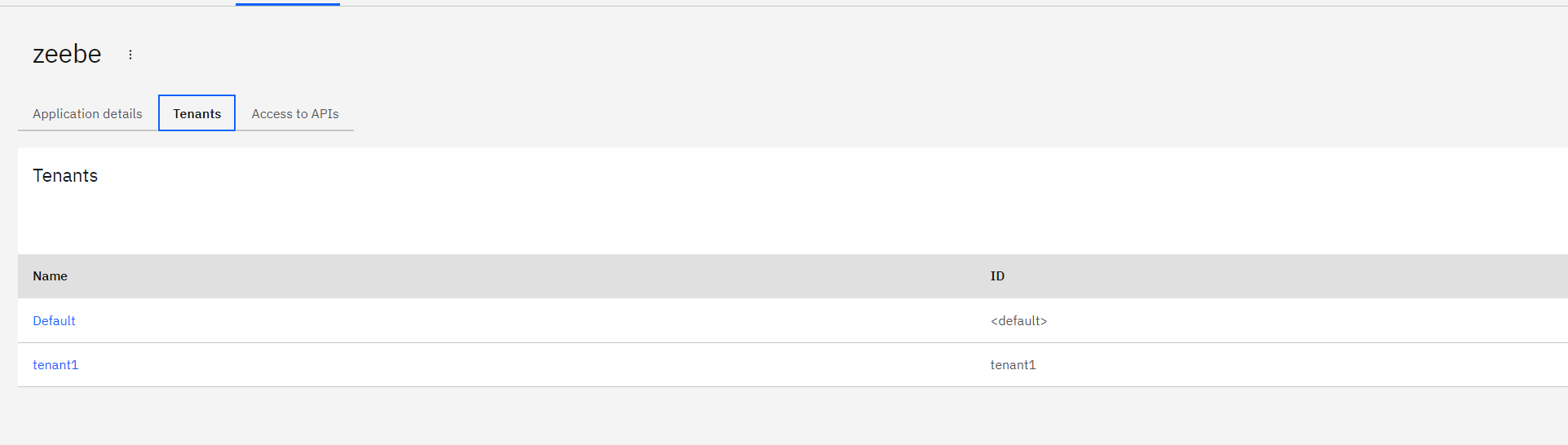

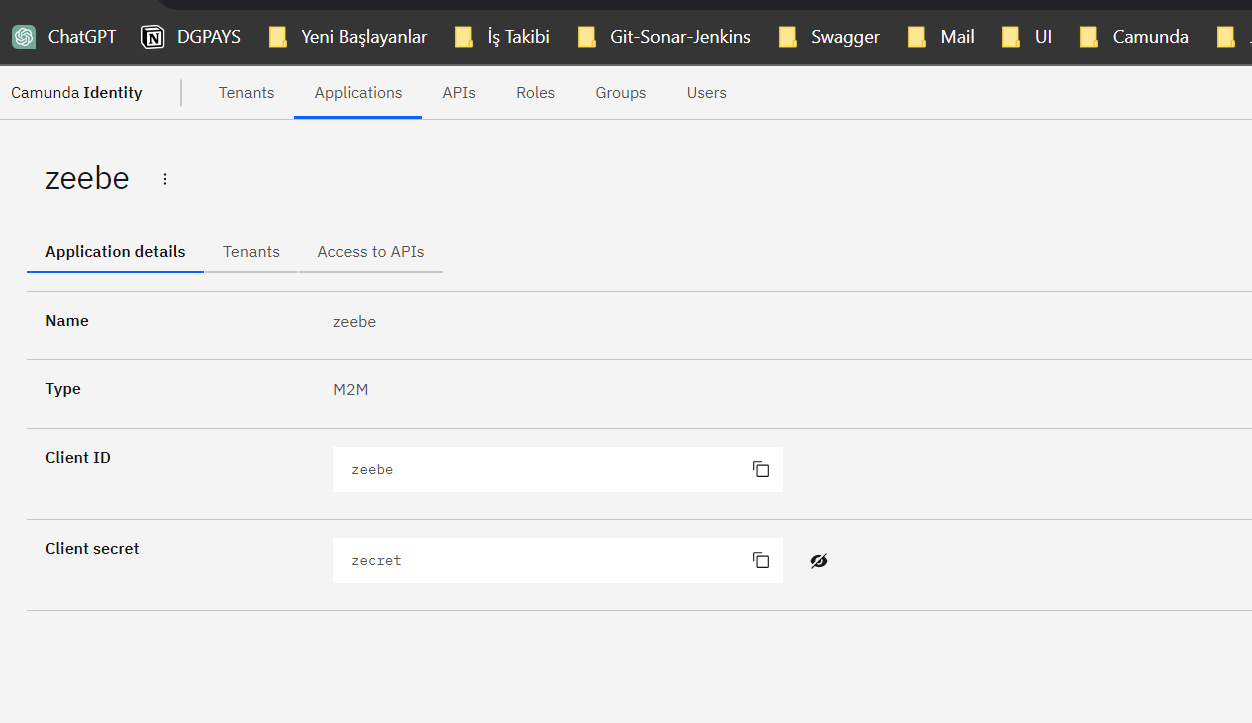

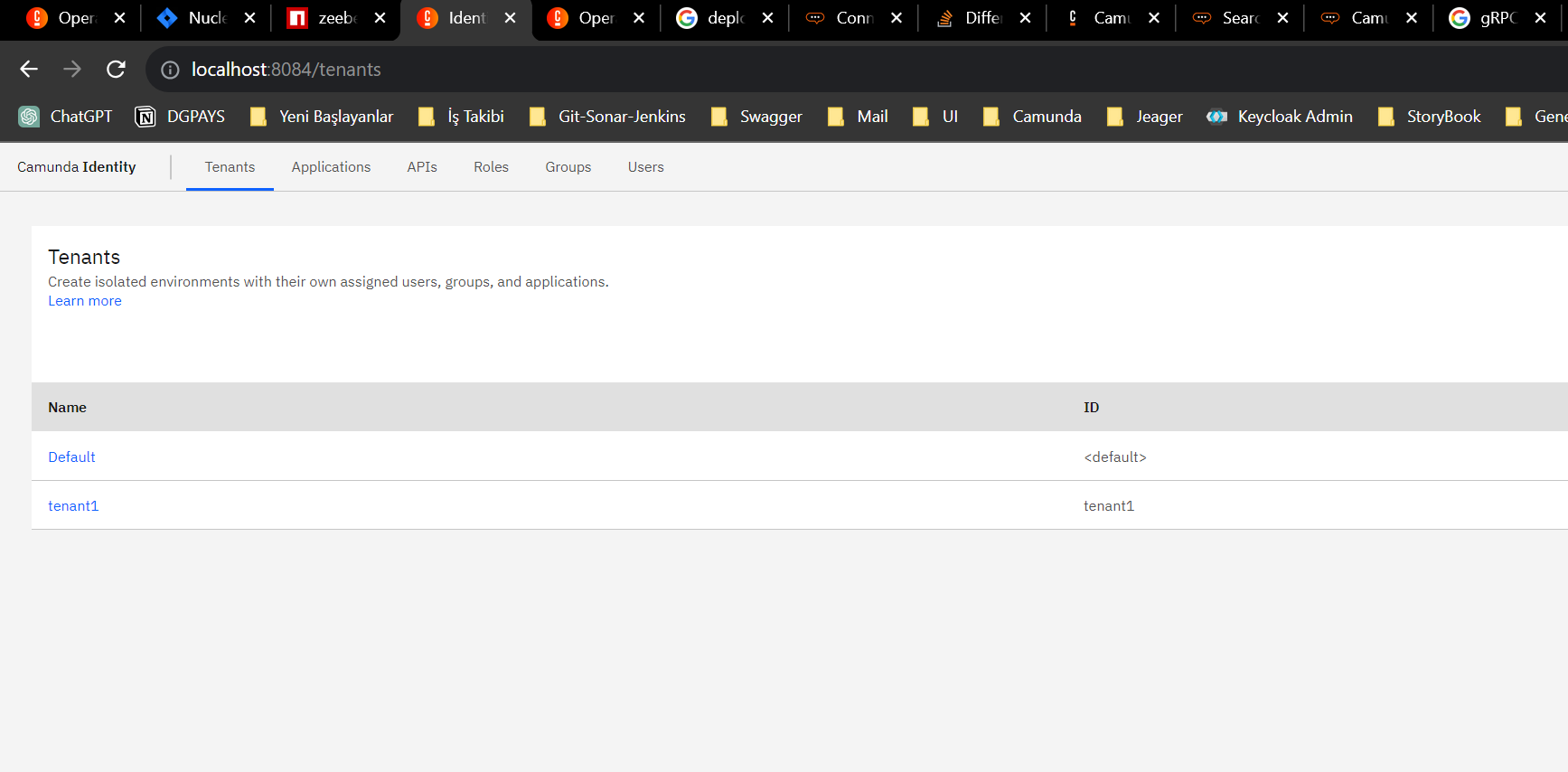

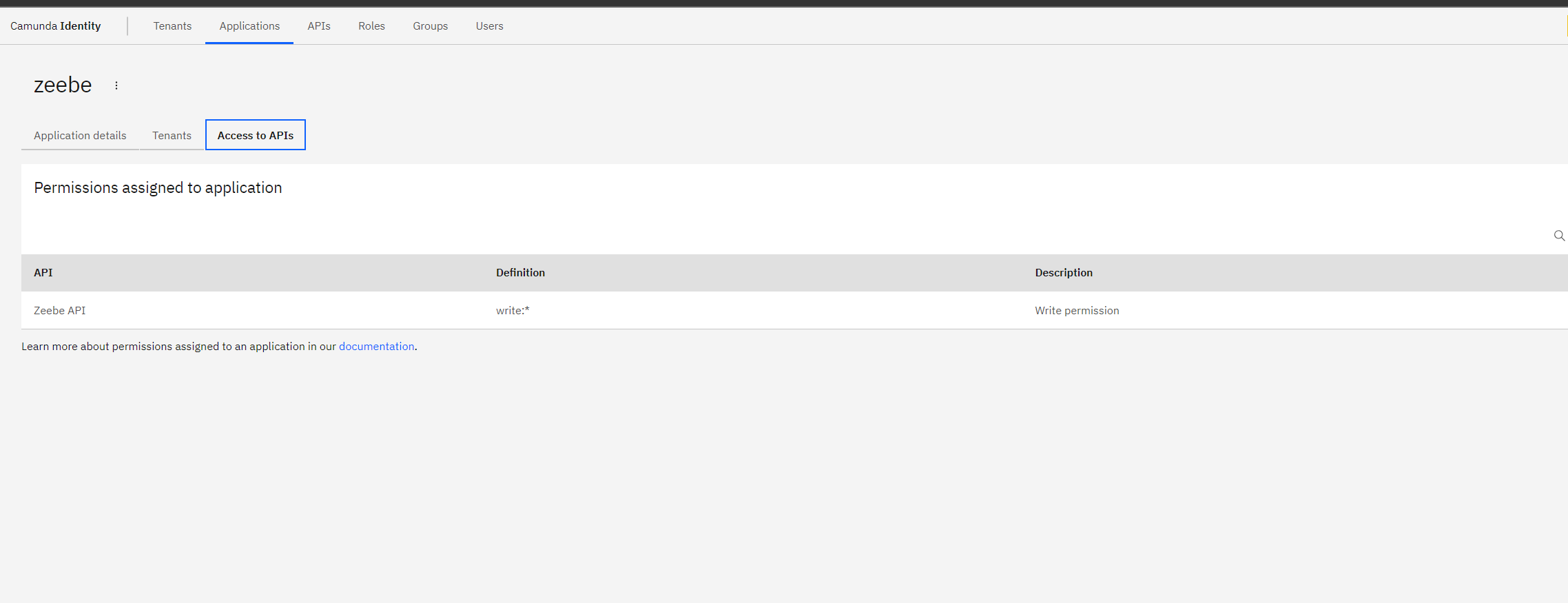

hi @nathan.loding thanks. Although I assigned the application, give same error. I share screenshots with you.

nathan.loding · November 28, 2023, 7:55pm

Hi @aylao - something appears to still be wrong with the permissions. Can you show the configuration for the zeebe application?

aylao · November 29, 2023, 6:37am

this is my docker-compose.yaml file
i have created an environment variable in .env file, so that i can manage it easily
and I have docker-compose.override.yaml for zeebe

docker-compose.override.yml

version: '3.7'

services:
  redis:
    container_name: redis
    restart: on-failure
    ports:
      - "6379:6379"
    networks:
      - camunda-platform

  zeebe:
    image: camunda/zeebe:${CAMUNDA_PLATFORM_VERSION}
    container_name: zeebe
    restart: on-failure
    ports:
      - "26500:26500"
      - "9600:9600"
   environment:
      -ZEEBE_BROKER_GATEWAY_SECURITY_AUTHENTICATION_MODE=${ZEEBE_AUTHENTICATION_MODE}
	  -ZEEBE_BROKER_GATEWAY_SECURITY_AUTHENTICATION_IDENTITY_ISSUERBACKENDURL=http://keycloak:8080/auth/realms/camunda-platform
	  -ZEEBE_BROKER_GATEWAY_SECURITY_AUTHENTICATION_IDENTITY_AUDIENCE=zeebe-api
	  -ZEEBE_BROKER_GATEWAY_SECURITY_AUTHENTICATION_IDENTITY_BASEURL=http://identity:8084/
	  -ZEEBE_GATEWAY_SECURITY_AUTHENTICATION_IDENTITY_BASEURL=http://identity:8084
	  -ZEEBE_GATEWAY_MULTITENANCY_ENABLED=${MULTITENANCY_ENABLED}
	  -ZEEBE_BROKER_GATEWAY_MULTITENANCY_ENABLED=${MULTITENANCY_ENABLED}
	  -ZEEBE_TENANT_ID=tenant1
	  -ZEEBE_BROKER_EXPORTERS_ELASTICSEARCH_CLASSNAME=io.camunda.zeebe.exporter.ElasticsearchExporter
	  -ZEEBE_BROKER_EXPORTERS_ELASTICSEARCH_ARGS_URL=http://elasticsearch:9200
	  -ZEEBE_BROKER_EXPORTERS_ELASTICSEARCH_ARGS_BULK_SIZE=1000
	  -ZEEBE_BROKER_EXPORTERS_AURA_CLASSNAME=io.zeebe.aura.exporter.AuraExporter
	  -ZEEBE_BROKER_EXPORTERS_AURA_JARPATH=exporters/zeebe-aura-exporter-1.4.4-jar-with-dependencies.jar
	  -ZEEBE_AURA_DAPR_ADDRESS=http://zeebe-dapr:3601
	  -ZEEBE_AURA_DAPR_PUBSUB_NAME=pubsub
	  -ZEEBE_AURA_DISABLED_VALUE_TYPES=JOB_BATCH
	  -ZEEBE_AURA_DISABLED_RECORD_TYPES=COMMAND
	  -ZEEBE_AURA_RESPONSE_TOPIC=RESPONSE-EXPORTER
	  -ZEEBE_AURA_COMPENSATION_TOPIC=COMPENSATION-EXPORTER
	  -ZEEBE_AURA_DAPR_TOPIC=DAPR-EXPORTER
	  -ZEEBE_AURA_CORRELATION_ID_KEY=CorrelationId
	  -ZEEBE_AURA_ACTIVITY_ID_KEY=ActivityId
	  # allow running with low disk space
	  -ZEEBE_BROKER_DATA_DISKUSAGECOMMANDWATERMARK=0.998
	  -ZEEBE_BROKER_DATA_DISKUSAGEREPLICATIONWATERMARK=0.999
	  -ZEEBE_BROKER_GATEWAY_CLUSTER_REQUESTTIMEOUT=PT20S
	  -JAVA_TOOL_OPTIONS=-Xms512m -Xmx512m
	  -ZEEBE_METRICS_HTTP_SERVER="true"
	  #- ZEEBE_LOG_LEVEL=debug
    volumes:
      - zeebe:/usr/local/zeebe/data
      - ./exporters/:/usr/local/zeebe/exporters/
    networks:
      - camunda-platform
    depends_on:
      - elasticsearch
      - identity

  elasticsearch:
    volumes:
      - elastic:/usr/share/elasticsearch/data

volumes:
    zeebe:
    elastic: {}

docker-compose.yml

version: '3.7'

services:
  dapr-placement:
    image: daprio/dapr
    container_name: dapr-placement
    restart: unless-stopped
    command: ["./placement", "-port", "50000", "-log-level", "debug"]
    ports:
      - "50000:50000"
    networks:
      - camunda-platform

  seq:
    image: datalust/seq:${SEQ_VERSION}
    container_name: seq
    restart: on-failure
    environment:
      - ACCEPT_EULA=Y
    ports:
      - "5341:80"

  postgres:
    image: postgres:${POSTGRES_VERSION}
    container_name: postgres
    restart: unless-stopped
    environment:
      PGUSER: admin
      POSTGRES_DB: bitnami_keycloak
      POSTGRES_USER: ${POSTGRES_USER:-admin}
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD:-postgres}
    healthcheck:
      test: [ "CMD-SHELL", "pg_isready -d $${POSTGRES_DB} -U $${POSTGRES_USER}" ]
      interval: 10s
      timeout: 5s
      retries: 5
    ports:
      - "5432:5432"
    volumes:
      - postgres-data:/var/lib/postgresql/data
    networks:
      - identity-network

  redis:
    image: redis:${REDIS_VERSION}
    container_name: redis
    restart: unless-stopped
    ports:
      - "6379:6379"
    networks:
      - camunda-platform

  rabbitmq:
    image: rabbitmq:3-management-alpine
    container_name: rabbitmq
    restart: unless-stopped
    ports:
        - 5672:5672
        - 15672:15672
    volumes:
        - ~/.docker-conf/rabbitmq/data/:/var/lib/rabbitmq/
        - ~/.docker-conf/rabbitmq/log/:/var/log/rabbitmq
    networks:
        - camunda-platform

  zeebe-dapr:
    container_name: zeebe-dapr
    image: "daprio/daprd:edge"
    restart: unless-stopped
    ports:
      - "3601:3601"
    command: [
      "./daprd",
      "--app-id", "zeebe",
      "--app-port", "26500",
      "--app-protocol", "grpc",
      "--dapr-http-port", "3601",
      "--placement-host-address", "dapr-placement:50000",
      "--resources-path", "./components"
    ]
    volumes:
      - "./components/:/components"
    networks:
      - camunda-platform
      - identity-network
    depends_on:
      - zeebe

  operate:
    image: camunda/operate:${CAMUNDA_PLATFORM_VERSION}
    container_name: operate
    restart: unless-stopped
    ports:
      - "8081:8080"
    environment: # https://docs.camunda.io/docs/self-managed/operate-deployment/configuration/
      - CAMUNDA_OPERATE_ZEEBE_GATEWAYADDRESS=zeebe:26500
      - ZEEBE_CLIENT_ID=${ZEEBE_CLIENT_ID}
      - ZEEBE_CLIENT_SECRET=${ZEEBE_CLIENT_SECRET}
      - ZEEBE_TOKEN_AUDIENCE=zeebe-api
      - ZEEBE_AUTHORIZATION_SERVER_URL=http://keycloak:8080/auth/realms/camunda-platform/protocol/openid-connect/token
      - CAMUNDA_OPERATE_ELASTICSEARCH_URL=http://elasticsearch:9200
      - CAMUNDA_OPERATE_ZEEBEELASTICSEARCH_URL=http://elasticsearch:9200
      # For more information regarding configuration with Identity see:
      # https://docs.camunda.io/docs/self-managed/operate-deployment/authentication/#identity
      - SPRING_PROFILES_ACTIVE=identity-auth
      - CAMUNDA_OPERATE_IDENTITY_BASEURL=http://identity:8084
      - CAMUNDA_OPERATE_IDENTITY_ISSUER_URL=http://${HOST}:18080/auth/realms/camunda-platform
      - CAMUNDA_OPERATE_IDENTITY_ISSUER_BACKEND_URL=http://keycloak:8080/auth/realms/camunda-platform
      - CAMUNDA_OPERATE_IDENTITY_CLIENTID=operate
      - CAMUNDA_OPERATE_IDENTITY_CLIENTSECRET=XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      - CAMUNDA_OPERATE_IDENTITY_AUDIENCE=operate-api
      - SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_ISSUER_URI=http://${HOST}:18080/auth/realms/camunda-platform
      - SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_JWK_SET_URI=http://${HOST}:18080/auth/realms/camunda-platform/protocol/openid-connect/certs
      - CAMUNDA_OPERATE_IDENTITY_RESOURCEPERMISSIONSENABLED=${RESOURCE_AUTHORIZATIONS_ENABLED}
      - CAMUNDA_OPERATE_MULTITENANCY_ENABLED=${MULTITENANCY_ENABLED}
      - management.endpoints.web.exposure.include=health
      - management.endpoint.health.probes.enabled=true
    networks:
      - camunda-platform
      - identity-network
    depends_on:
      - zeebe
      - identity
      - elasticsearch

  tasklist:
    image: camunda/tasklist:${CAMUNDA_PLATFORM_VERSION}
    container_name: tasklist
    restart: unless-stopped
    ports:
      - "8082:8080"
    environment: # https://docs.camunda.io/docs/self-managed/tasklist-deployment/configuration/
      - CAMUNDA_TASKLIST_ZEEBE_GATEWAYADDRESS=zeebe:26500
      - ZEEBE_CLIENT_ID=${ZEEBE_CLIENT_ID}
      - ZEEBE_CLIENT_SECRET=${ZEEBE_CLIENT_SECRET}
      - ZEEBE_TOKEN_AUDIENCE=zeebe-api
      - ZEEBE_AUTHORIZATION_SERVER_URL=http://keycloak:8080/auth/realms/camunda-platform/protocol/openid-connect/token
      - CAMUNDA_TASKLIST_ELASTICSEARCH_URL=http://elasticsearch:9200
      - CAMUNDA_TASKLIST_ZEEBEELASTICSEARCH_URL=http://elasticsearch:9200
      # For more information regarding configuration with Identity see:
      # https://docs.camunda.io/docs/self-managed/tasklist-deployment/authentication/#identity
      - SPRING_PROFILES_ACTIVE=identity-auth
      - CAMUNDA_TASKLIST_IDENTITY_BASEURL=http://identity:8084
      - CAMUNDA_TASKLIST_IDENTITY_ISSUER_URL=http://${HOST}:18080/auth/realms/camunda-platform
      - CAMUNDA_TASKLIST_IDENTITY_ISSUER_BACKEND_URL=http://keycloak:8080/auth/realms/camunda-platform
      - CAMUNDA_TASKLIST_IDENTITY_CLIENTID=tasklist
      - CAMUNDA_TASKLIST_IDENTITY_CLIENTSECRET=XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      - CAMUNDA_TASKLIST_IDENTITY_AUDIENCE=tasklist-api
      - SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_ISSUER_URI=http://${HOST}:18080/auth/realms/camunda-platform
      - SPRING_SECURITY_OAUTH2_RESOURCESERVER_JWT_JWK_SET_URI=http://${HOST}:18080/auth/realms/camunda-platform/protocol/openid-connect/certs
      #- CAMUNDA_TASKLIST_IDENTITY_RESOURCE_PERMISSIONS_ENABLED=${RESOURCE_AUTHORIZATIONS_ENABLED}
      - CAMUNDA_TASKLIST_MULTITENANCY_ENABLED=${MULTITENANCY_ENABLED}
      - management.endpoints.web.exposure.include=health
      - management.endpoint.health.probes.enabled=true
    networks:
      - camunda-platform
      - identity-network
    depends_on:
      - zeebe
      - identity
      - elasticsearch

  connectors:
    image: camunda/connectors-bundle:${CAMUNDA_CONNECTORS_VERSION}
    container_name: connectors
    restart: on-failure
    ports:
      - "8085:8080"
    environment:
      - ZEEBE_CLIENT_BROKER_GATEWAY-ADDRESS=zeebe:26500
      - ZEEBE_CLIENT_SECURITY_PLAINTEXT=true
      - ZEEBE_CLIENT_ID=${ZEEBE_CLIENT_ID}
      - ZEEBE_CLIENT_SECRET=${ZEEBE_CLIENT_SECRET}
      - ZEEBE_TOKEN_AUDIENCE=zeebe-api
      - ZEEBE_AUTHORIZATION_SERVER_URL=http://keycloak:8080/auth/realms/camunda-platform/protocol/openid-connect/token
      - CAMUNDA_OPERATE_CLIENT_KEYCLOAK-URL=http://keycloak:8080
      - CAMUNDA_OPERATE_CLIENT_CLIENT-ID=connectors
      - CAMUNDA_OPERATE_CLIENT_CLIENT-SECRET=c0nn3ct0rsAr3Aw3s0me
      - CAMUNDA_OPERATE_CLIENT_KEYCLOAK-REALM=camunda-platform
      - CAMUNDA_OPERATE_CLIENT_URL=http://operate:8080
    env_file: connector-secrets.txt
    networks:
      - camunda-platform
    depends_on:
      - zeebe
      - operate
      - identity

  identity:
    image: camunda/identity:${CAMUNDA_PLATFORM_VERSION}
    container_name: identity
    restart: unless-stopped
    ports:
      - "8084:8084"
    environment: # https://docs.camunda.io/docs/self-managed/identity/deployment/configuration-variables/
      SERVER_PORT: 8084
      IDENTITY_RETRY_DELAY_SECONDS: 30
      KEYCLOAK_URL: http://keycloak:8080/auth
      IDENTITY_AUTH_PROVIDER_BACKEND_URL: http://keycloak:8080/auth/realms/camunda-platform
      IDENTITY_DATABASE_HOST: postgres
      IDENTITY_DATABASE_PORT: 5432
      IDENTITY_DATABASE_NAME: bitnami_keycloak
      IDENTITY_DATABASE_USERNAME: ${POSTGRES_USER}
      IDENTITY_DATABASE_PASSWORD: ${POSTGRES_PASSWORD}
      KEYCLOAK_INIT_OPERATE_SECRET: XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      KEYCLOAK_INIT_OPERATE_ROOT_URL: http://${HOST}:8081
      KEYCLOAK_INIT_TASKLIST_SECRET: XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      KEYCLOAK_INIT_TASKLIST_ROOT_URL: http://${HOST}:8082
      KEYCLOAK_INIT_OPTIMIZE_SECRET: XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      KEYCLOAK_INIT_OPTIMIZE_ROOT_URL: http://${HOST}:8083
      KEYCLOAK_INIT_WEBMODELER_ROOT_URL: http://${HOST}:8070
      KEYCLOAK_INIT_CONNECTORS_SECRET: XALaRPl5qwTEItdwCMiPS62nVpKs7dL7
      KEYCLOAK_INIT_CONNECTORS_ROOT_URL: http://${HOST}:8085
      KEYCLOAK_INIT_ZEEBE_NAME: zeebe
      KEYCLOAK_USERS_0_USERNAME: "demo"
      KEYCLOAK_USERS_0_PASSWORD: "demo"
      KEYCLOAK_USERS_0_FIRST_NAME: "demo"
      KEYCLOAK_USERS_0_EMAIL: "demo@acme.com"
      KEYCLOAK_USERS_0_ROLES_0: "Identity"
      KEYCLOAK_USERS_0_ROLES_1: "Optimize"
      KEYCLOAK_USERS_0_ROLES_2: "Operate"
      KEYCLOAK_USERS_0_ROLES_3: "Tasklist"
      KEYCLOAK_USERS_0_ROLES_4: "Web Modeler"
      KEYCLOAK_CLIENTS_0_NAME: zeebe
      KEYCLOAK_CLIENTS_0_ID: ${ZEEBE_CLIENT_ID}
      KEYCLOAK_CLIENTS_0_SECRET: ${ZEEBE_CLIENT_SECRET}
      KEYCLOAK_CLIENTS_0_TYPE: M2M
      KEYCLOAK_CLIENTS_0_PERMISSIONS_0_RESOURCE_SERVER_ID: zeebe-api
      KEYCLOAK_CLIENTS_0_PERMISSIONS_0_DEFINITION: write:*
      RESOURCE_PERMISSIONS_ENABLED: ${RESOURCE_AUTHORIZATIONS_ENABLED}
      MULTITENANCY_ENABLED: ${MULTITENANCY_ENABLED}
    healthcheck:
      test: [ "CMD", "curl", "-f", "http://localhost:8084/actuator/health" ]
      interval: 5s
      timeout: 15s
      retries: 30
      start_period: 60s
    volumes:
      - keycloak-theme:/app/keycloak-theme
    networks:
      - camunda-platform
      - identity-network
    depends_on:
      keycloak:
        condition: service_healthy

  keycloak:
    image: bitnami/keycloak:${KEYCLOAK_SERVER_VERSION}
    container_name: keycloak
    restart: unless-stopped
    volumes:
      - keycloak-theme:/opt/bitnami/keycloak/themes/identity
    ports:
      - "18080:8080"
    environment:
      KEYCLOAK_HTTP_RELATIVE_PATH: /auth
      KEYCLOAK_DATABASE_HOST: postgres
      KEYCLOAK_DATABASE_USER: ${POSTGRES_USER}
      KEYCLOAK_DATABASE_PASSWORD: ${POSTGRES_PASSWORD}
      KEYCLOAK_ADMIN_USER: ${KEYCLOAK_ADMIN_USER}
      KEYCLOAK_ADMIN_PASSWORD: ${KEYCLOAK_ADMIN_PASSWORD}
    healthcheck:
      test: [ "CMD", "curl", "-f", "http://localhost:8080/auth" ]
      interval: 30s
      timeout: 15s
      retries: 5
      start_period: 30s
    networks:
      - camunda-platform
      - identity-network
    depends_on:
      - postgres

  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:${ELASTIC_VERSION}
    container_name: elasticsearch
    restart: unless-stopped
    ports:
      - "9200:9200"
      - "9300:9300"
    environment:
      - bootstrap.memory_lock=true
      - discovery.type=single-node
      - xpack.security.enabled=false
      # allow running with low disk space
      - cluster.routing.allocation.disk.threshold_enabled=false
      - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test: [ "CMD-SHELL", "curl -f http://localhost:9200/_cat/health | grep -q green" ]
      interval: 30s
      timeout: 5s
      retries: 3
    networks:
      - camunda-platform

  kibana:
    image: docker.elastic.co/kibana/kibana:${ELASTIC_VERSION}
    container_name: kibana
    restart: unless-stopped
    ports:
      - 5601:5601
    volumes:
      - kibana:/usr/share/kibana/data
    networks:
      - camunda-platform
    depends_on:
      - elasticsearch

  jaeger:
    image: jaegertracing/all-in-one
    container_name: jaeger
    restart: unless-stopped
    environment:
      - COLLECTOR_ZIPKIN_HOST_PORT=:9412
      - COLLECTOR_OTLP_ENABLED=true
    ports:
      - "16686:16686"
      - "9412:9412"
      - "6831:6831/udp"
      - "6832:6832/udp"
      - "5778:5778"
      - "4317:4317"
      - "4318:4318"
      - "14250:14250"
      - "14268:14268"
      - "14269:14269"

volumes:
    postgres-data:
    keycloak-theme:
    kibana:

networks:
  camunda-platform:
  identity-network:

file .env

## Image versions ##
CAMUNDA_CONNECTORS_VERSION=8.3.0
CAMUNDA_PLATFORM_VERSION=8.3.0
ELASTIC_VERSION=8.8.2
KEYCLOAK_SERVER_VERSION=21.1.2
POSTGRES_VERSION=15.2
SEQ_VERSION=latest
REDIS_VERSION=alpine
HOST=localhost

POSTGRES_USER=admin
POSTGRES_PASSWORD=postgres

KEYCLOAK_ADMIN_USER=admin
KEYCLOAK_ADMIN_PASSWORD=admin

## Configuration ##
# By default the zeebe api is public, when setting this to `identity` a valid zeebe client token is required
ZEEBE_CLIENT_ID=zeebe
ZEEBE_CLIENT_SECRET=zecret

# This can be used to limit access for users or groups to view/update specific
# processes and decisions in Operate and Tasklist
RESOURCE_AUTHORIZATIONS_ENABLED=false

MULTITENANCY_ENABLED=true

ZEEBE_AUTHENTICATION_MODE=identity

IDENTITY_CLIENT_SECRET=JWSLQmCSHyFzfYoRd2i0iDbX0EqQ5ACE

nathan.loding · November 29, 2023, 7:33pm

Hi @aylao - apologies for the confusion! I meant the zeebe application inside Identity, that you assigned to the tenant1 tenant.

aylao · November 30, 2023, 6:32am

hi @nathan.loding , well I shared

aylao · December 4, 2023, 1:27pm

@nathan.loding I wanted to remind myself for this question
