Execution local variable

[Cristian]

Hi there,

In a process model I have a multi-instance embedded subprocess which receives some variable local. Within each instance of the multiple ones, I have an embedded subprocess from which I need access to the outer instance subprocess local variables. How do I do that?

Thank you,
Cristian

[herrier]

Hi @Cristian - please could you upload a diagram to make the scenario clearer?

[herrier]

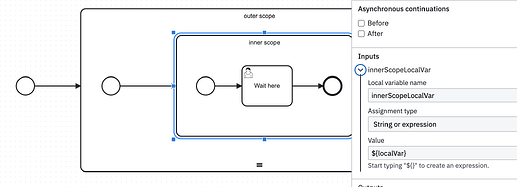

Hi @Cristian, most likely you need to use an input mapping on your embedded subprocess to copy the local in the outer scope to a new local in the inner scope.

Something like this?

[Cristian]

Thank you. I already took the same approach. I was using an older version of modeler which makes it not as obvious as latest one. All the best!
