Format XML

[Nancy_Carmen_L_L]

Hi
I did not open this XML File in modeler camunda, can you help me please.
Thanks

<?xml version="1.0" encoding="UTF-8"?>

<bpmn:definitions xmlns:bpmn=“http://www.omg.org/spec/BPMN/20100524/MODEL” xmlns:modeler=“http://camunda.org/schema/modeler/1.0” xmlns:camunda=“http://camunda.org/schema/1.0/bpmn” id=“Definitions_1” targetNamespace=“http://bpmn.io/schema/bpmn” exporter=“Camunda Web Modeler” exporterVersion=“ac16d31” modeler:executionPlatform=“Camunda Cloud” modeler:executionPlatformVersion=“8.6.0”>
<bpmn:process id=“AbrirCuentaCorriente” name=“Abrir Cuenta Corriente” isExecutable=“true”>
<bpmn:serviceTask id=“Ingresar_Datos” name=“Ingresar Datos” camunda:class=“org.camunda.bpm.engine.impl.bpmn.listener.TaskListener” />
<bpmn:serviceTask id=“Verificar_Identidad” name=“Verificar Identidad” camunda:class=“org.camunda.bpm.engine.impl.bpmn.listener.TaskListener” />
<bpmn:serviceTask id=“Aprobar_Solicitud” name=“Aprobar Solicitud” camunda:class=“org.camunda.bpm.engine.impl.bpmn.listener.TaskListener” />
<bpmn:serviceTask id=“Notificar_Resultado” name=“Notificar Resultado” camunda:class=“org.camunda.bpm.engine.impl.bpmn.listener.TaskListener” />
</bpmn:process>
</bpmn:definitions>

[Niall]

Can you explain the issue you’re having by answer these questions:

1. What are you trying to do?
2. What was the expected result?
3. What actually happened?

[Nancy_Carmen_L_L]

When open XML file by modeler camunda, a message display “Invalid Diagram” and no diagram to display.

[Alex_Voloshyn]

Hi @Nancy_Carmen_L_L
Could you export the BPMN in a designed way like the following?

Regards,
Alex

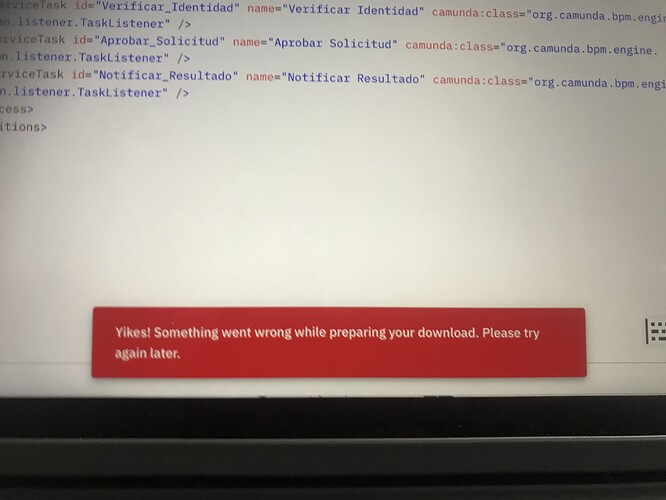

[Nancy_Carmen_L_L]

[Nancy_Carmen_L_L]

Display a message: “This XML file contains errors” too.
I don t know where is the errors

Regards

[Niall]

Was the model created in the Camunda Web modeler?

[Nancy_Carmen_L_L]

It created by a program

[Niall]

If it’s created programatically it doesn’t contain the “Diagram Interchange” section of the BPMN - this is what tells the modeler where to put the symbols. Without this, the modeler cannot display the model.

[Nancy_Carmen_L_L]

thanks for helping!!
