How to get current state of a process instance using rest-api?

Camunda 7 Topics Discussion & Questions
1

How can we get the current state of a process instance using rest-api?

  1. Can we get a rendered form of current state?
  2. Or can we just get the state and render that state using bpmn-js?

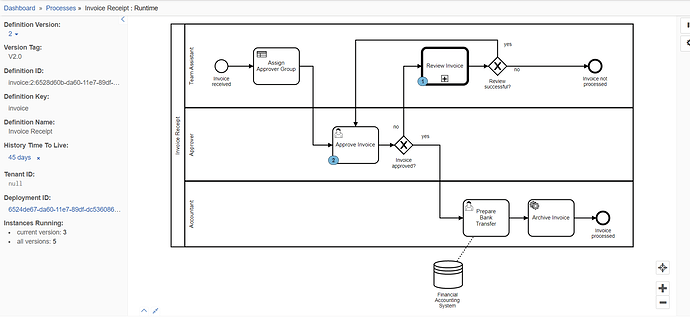

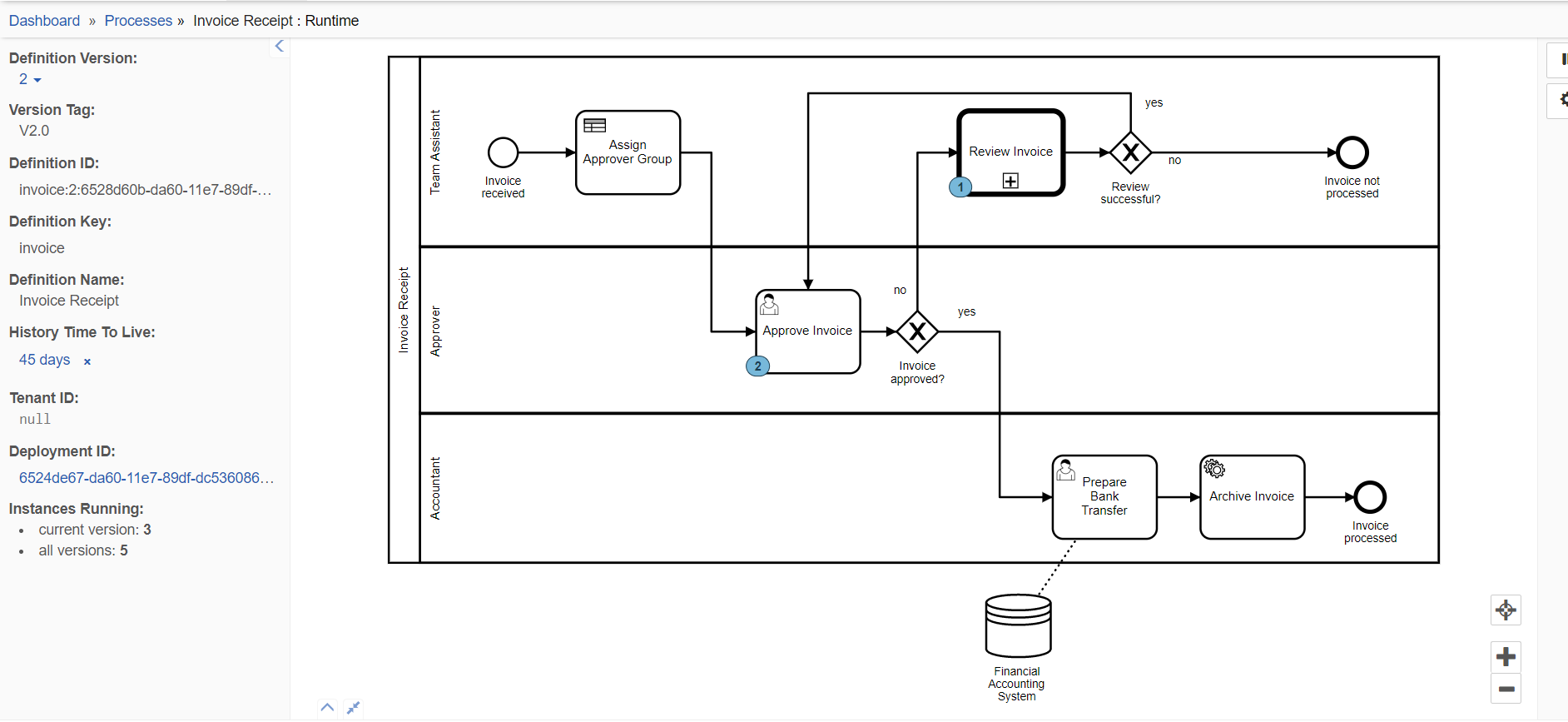

like one we have in camunda console

q3
q31884×867 67.5 KB

2

Or can we just get the state and render that state using bpmn-js?

That’s the way to go.

This is the REST request for a single process instance: https://docs.camunda.org/manual/7.8/reference/rest/process-instance/get-activity-instances/
This is the REST request for an aggregation over all instances of a process definition: https://docs.camunda.org/manual/7.8/reference/rest/process-definition/get-activity-statistics/

Cheers,
Thorben

3

What relation does a process have to its subprocess call activity?
When I call the /process-instance/:id/activity-instances endpoint I’m just returned the “parent” process’ activity which is of type callActivity, but since the subprocess is a process instance of its own, I need to call the same endpoint for that too; and when I do there’s no relationship between the two.

Am I missing something?
