Issue with RabbitMQ Intermediate Catch Event in Camunda 8: Message Not Triggering Process

[Sarvar]

Title:

Issue with RabbitMQ Intermediate Catch Event in Camunda 8: Message Not Triggering Process

---

Post Message:

Hello everyone,

I am facing an issue with the RabbitMQ Intermediate Catch Event Connector in Camunda 8.

Issue Description:

1. What works:

   • RabbitMQ is set up and successfully receives messages. I verified the message delivery through the RabbitMQ management interface.
   • A message is sent using a PHP script and is visible in the camunda-queue.

2. What doesn’t work:

   • Even though the message arrives in RabbitMQ, the Camunda process does not proceed beyond the Intermediate Catch Event.
   • In Camunda Operate, the process is stuck, waiting for the message at the Intermediate Catch Event.

3. Configuration Details:

   • Message Name (messageName): b99062c1-9dd0-4539-b272-343904591654
   • Correlation Key (correlationKey): myProcessKey
   • Message Payload (JSON):

     {
       "messageName": "b99062c1-9dd0-4539-b272-343904591654",
       "correlationKey": "myProcessKey",
       "variables": {
         "exampleVariable": "exampleValue"
       }
     }


4. Debugging Steps:

   • There are no errors in the RabbitMQ or Zeebe logs, except for a warning:

     WARN ZeebeCallCredentials: The request's security level does not guarantee that the credentials will be confidential.


   • I tried using curl inside the Zeebe container to test connectivity with RabbitMQ, but encountered issues installing curl.

5. My Assumptions:

   • The issue might be related to the correlation keys or configuration of the BPMN diagram event. I’ve double-checked the parameters, but the process remains stuck.

---

Questions:

• How can I properly validate that the messageName and correlationKey are matching between RabbitMQ and Camunda?
• Could the security warning about credentials impact the message delivery?
• What other troubleshooting steps would you recommend to ensure RabbitMQ and Camunda communicate correctly?

Thank you in advance for any advice or suggestions!

[jroques]

Hi @Sarvar,

Thank you for your question. Could you post the RabbitMQ configuration, especially the 2 correlation keys (process and payload).
The security warning has no impact here.

Thank you,
Jonathan

[Sarvar]

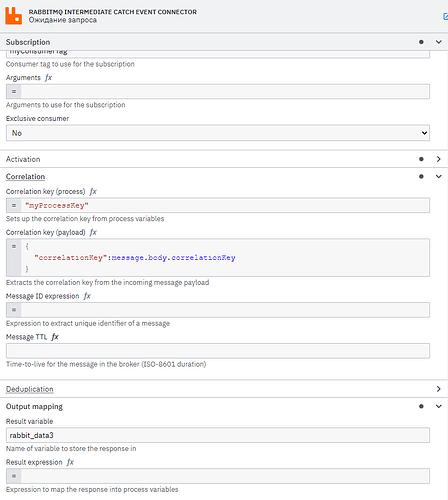

image1:

image2:

image3:

image4:

[Sarvar]

image5:

image6:

[Sarvar]

Hi @jroques I uploaded all my images from. Please check.

[jroques]

Indeed, this configuration is incorrect.

Please have a look at the RabbitMQ Connectors configuration.

In your case it might be:

• Correlation key(process): this looks OK
• Correlation key(payload): =message.body.correlationKey , without the “correlationKey” JSON parameter.

Then it should be fine

[Sarvar]

image7:

image8:

Process doesn’t work

[jroques]

I think the payload is incorrect.

Could you try using:

{
  "correlationKey": "myProcessKey",
  "someVariable": "someValue"
}

without the message and body part

[Sarvar]

Thank you very much! Working!
