I have followed the documentation closely
Tutorial: Camunda Enterprise Edition for Java Developers (Video 2) - YouTube,
@Niall has also made a tutorial, I have imitated it, but I still get an error message, could you maybe help me where is the problem

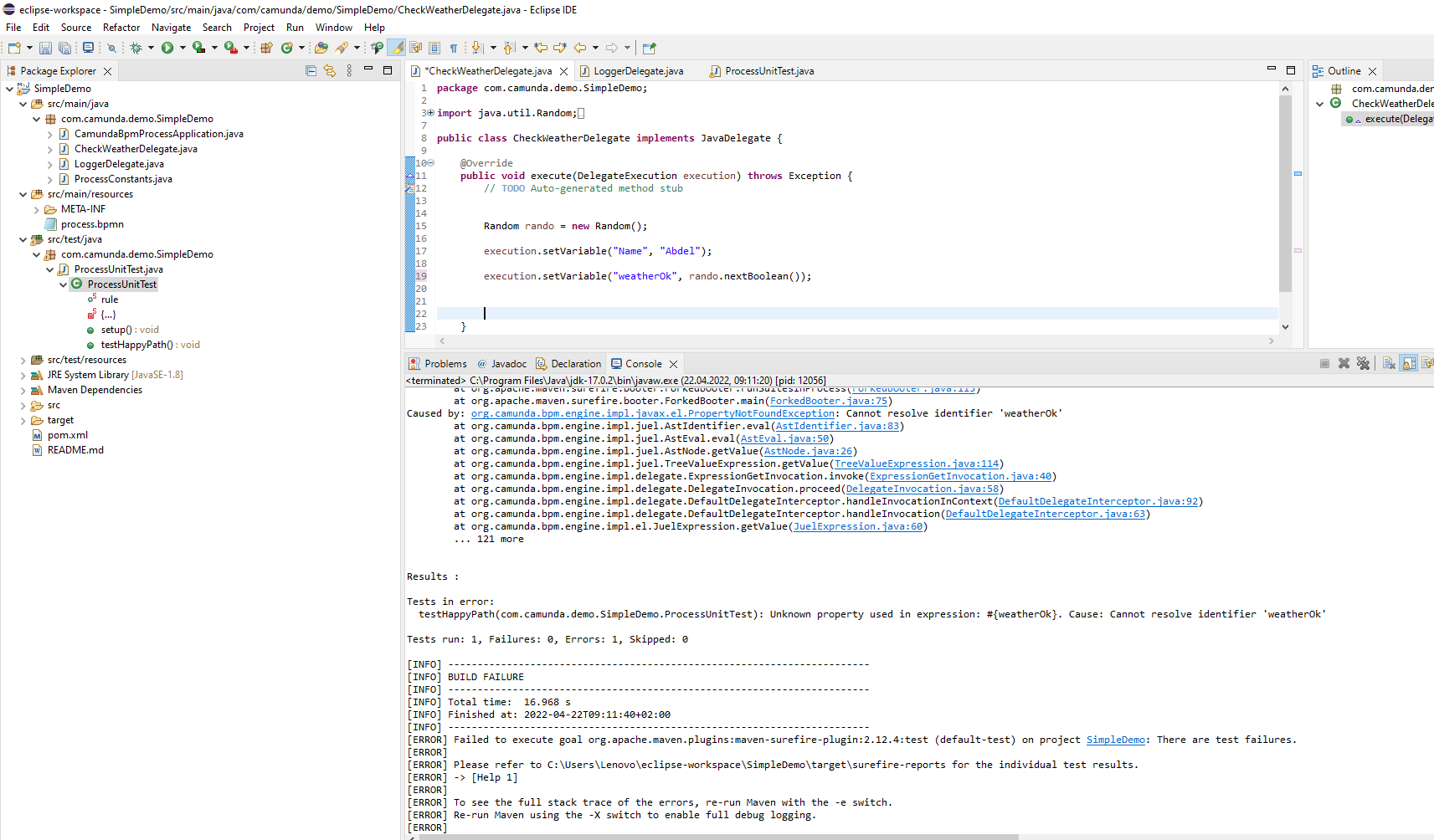

Can you upload the model?
Can you upload the file - i need to see the execution semantics
Hey @Niall You can change the extension instead of png you can open .bpmn and then with the moodler open
Thank youu !
because strangely I can’t download a file I can only pictures
Can you put the xml of the model into a code block?
<bpmn:definitions xmlns:bpmn=“http://www.omg.org/spec/BPMN/20100524/MODEL” xmlns:bpmndi=“http://www.omg.org/spec/BPMN/20100524/DI” xmlns:di=“http://www.omg.org/spec/DD/20100524/DI” xmlns:dc=“http://www.omg.org/spec/DD/20100524/DC” xmlns:xsi=“http://www.w3.org/2001/XMLSchema-instance” xmlns:camunda=“http://camunda.org/schema/1.0/bpmn” id=“Definitions_1” targetNamespace=“http://bpmn.io/schema/bpmn” exporter=“Camunda Modeler” exporterVersion=“4.11.1”>
<bpmn:process id=“SimpleDemo” name=“SimpleDemo” isExecutable=“true”>
<bpmn:startEvent id=“StartEventProcessStarted” name=“Process
started”>
bpmn:outgoingSequenceFlow1</bpmn:outgoing>
</bpmn:startEvent>
<bpmn:endEvent id=“EndEventProcessEnded” name=“Process
ended”>
bpmn:incomingFlow_1uxm6es</bpmn:incoming>
</bpmn:endEvent>
<bpmn:sequenceFlow id=“SequenceFlow1” sourceRef=“StartEventProcessStarted” targetRef=“Gateway_1yvl4kg” />
<bpmn:serviceTask id=“Activity_1594k8j” name=“check weather” camunda:class=“com.camunda.demo.SimpleDemo.CheckWeatherDelegate” />
<bpmn:exclusiveGateway id=“Gateway_1yvl4kg” name=“is the weather ok ?”>
bpmn:incomingSequenceFlow1</bpmn:incoming>
bpmn:outgoingFlow_1uxm6es</bpmn:outgoing>
bpmn:outgoingFlow_1cqnadc</bpmn:outgoing>
</bpmn:exclusiveGateway>
<bpmn:sequenceFlow id=“Flow_1uxm6es” name=“Yes” sourceRef=“Gateway_1yvl4kg” targetRef=“EndEventProcessEnded”>
<bpmn:conditionExpression xsi:type=“bpmn:tFormalExpression”>#{weatherOk}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id=“Flow_1cqnadc” name=“No” sourceRef=“Gateway_1yvl4kg” targetRef=“Activity_14x0kb2”>
<bpmn:conditionExpression xsi:type=“bpmn:tFormalExpression”>#{not weatherOk}</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:serviceTask id=“Activity_14x0kb2” name=“Print Complaint about weather” camunda:class=“com.camunda.demo.SimpleDemo.LoggerDelegate”>
bpmn:incomingFlow_1cqnadc</bpmn:incoming>
bpmn:outgoingFlow_093tpze</bpmn:outgoing>
</bpmn:serviceTask>
<bpmn:endEvent id=“Event_0tisaa7”>
bpmn:incomingFlow_093tpze</bpmn:incoming>
</bpmn:endEvent>
<bpmn:sequenceFlow id=“Flow_093tpze” sourceRef=“Activity_14x0kb2” targetRef=“Event_0tisaa7” />
</bpmn:process>
<bpmndi:BPMNDiagram id=“BPMNDiagram_1”>
<bpmndi:BPMNPlane id=“BPMNPlane_1” bpmnElement=“SimpleDemo”>
<bpmndi:BPMNEdge id=“SequenceFlow_08va5r8_di” bpmnElement=“SequenceFlow1”>
<di:waypoint x=“198” y=“300” />
<di:waypoint x=“515” y=“300” />
bpmndi:BPMNLabel
<dc:Bounds x=“337.5” y=“110” width=“90” height=“20” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id=“Flow_1uxm6es_di” bpmnElement=“Flow_1uxm6es”>
<di:waypoint x=“565” y=“300” />
<di:waypoint x=“782” y=“300” />
bpmndi:BPMNLabel
<dc:Bounds x=“665” y=“282” width=“18” height=“14” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id=“Flow_1cqnadc_di” bpmnElement=“Flow_1cqnadc”>
<di:waypoint x=“540” y=“275” />
<di:waypoint x=“540” y=“110” />
<di:waypoint x=“620” y=“110” />
bpmndi:BPMNLabel
<dc:Bounds x=“548” y=“190” width=“15” height=“14” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id=“Flow_093tpze_di” bpmnElement=“Flow_093tpze”>
<di:waypoint x=“720” y=“90” />
<di:waypoint x=“782” y=“90” />
</bpmndi:BPMNEdge>
<bpmndi:BPMNShape id=“Gateway_1yvl4kg_di” bpmnElement=“Gateway_1yvl4kg” isMarkerVisible=“true”>
<dc:Bounds x=“515” y=“275” width=“50” height=“50” />
bpmndi:BPMNLabel
<dc:Bounds x=“498” y=“335” width=“84” height=“27” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id=“Activity_0c9rbzm_di” bpmnElement=“Activity_1594k8j”>
<dc:Bounds x=“330” y=“260” width=“100” height=“80” />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement=“StartEventProcessStarted”>
<dc:Bounds x=“162” y=“282” width=“36” height=“36” />
bpmndi:BPMNLabel
<dc:Bounds x=“160” y=“318” width=“41” height=“27” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id=“EndEvent_0fkea3f_di” bpmnElement=“EndEventProcessEnded”>
<dc:Bounds x=“782” y=“282” width=“36” height=“36” />
bpmndi:BPMNLabel
<dc:Bounds x=“780” y=“318” width=“41” height=“27” />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id=“Activity_0p7p3r0_di” bpmnElement=“Activity_14x0kb2”>
<dc:Bounds x=“620” y=“50” width=“100” height=“80” />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id=“Event_0tisaa7_di” bpmnElement=“Event_0tisaa7”>
<dc:Bounds x=“782” y=“72” width=“36” height=“36” />
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn:definitions>
Sorry - there was a problem with the settings, you should be able to upload your BPMN file now.

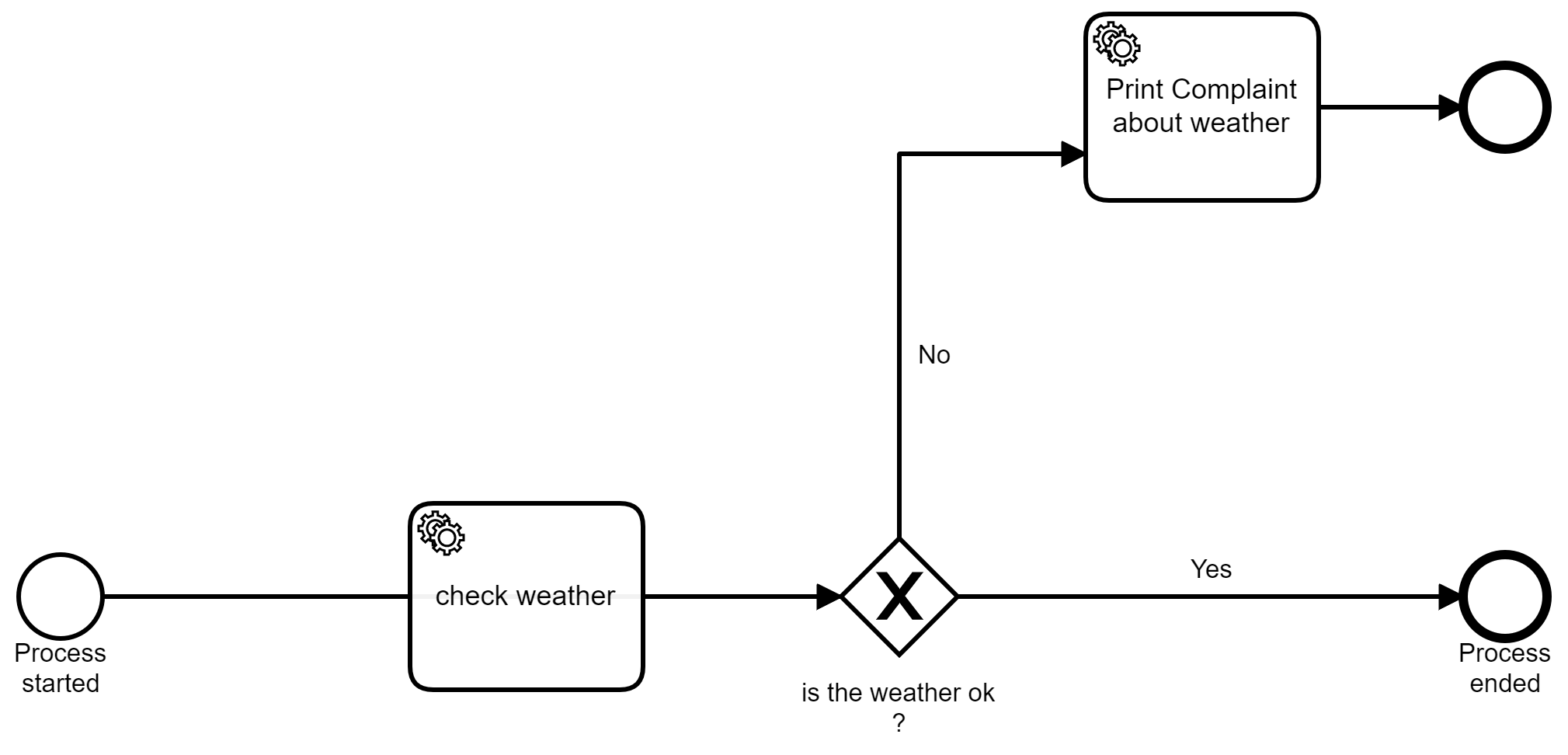

Ok, i’ve found the problem. The sequence flow seems to skip the service task.
You can fix it by changing the flow connections

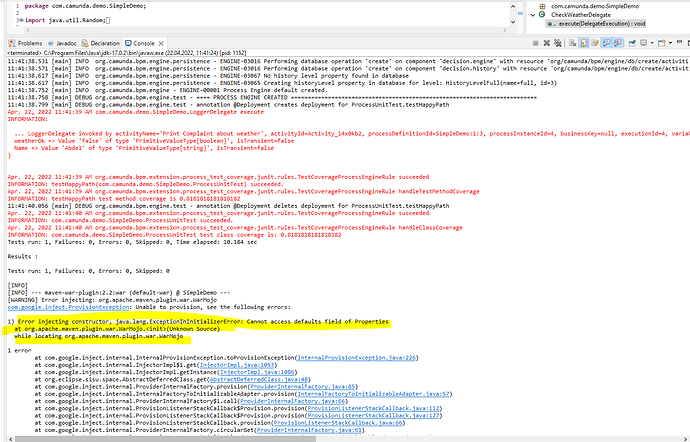

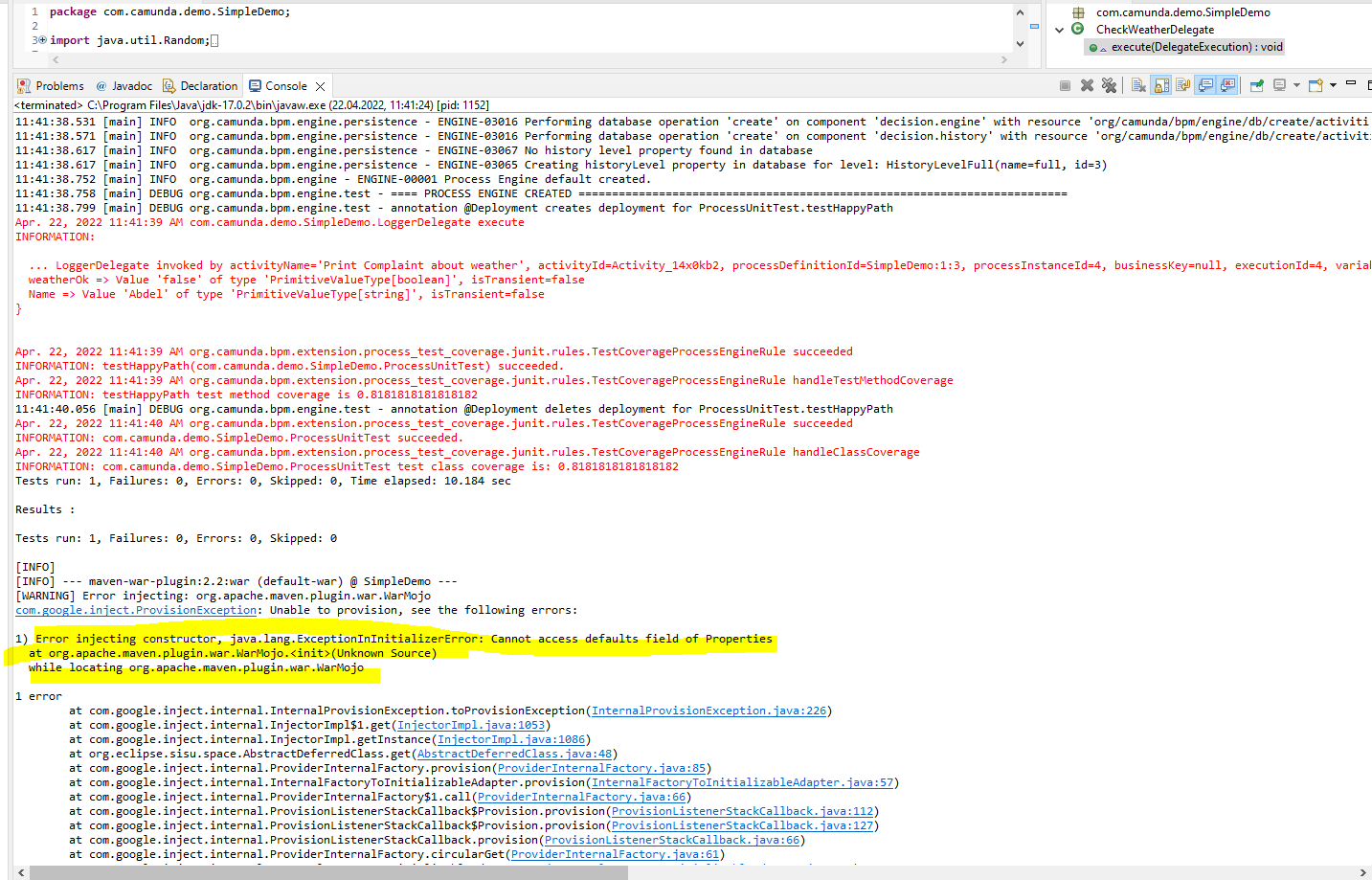

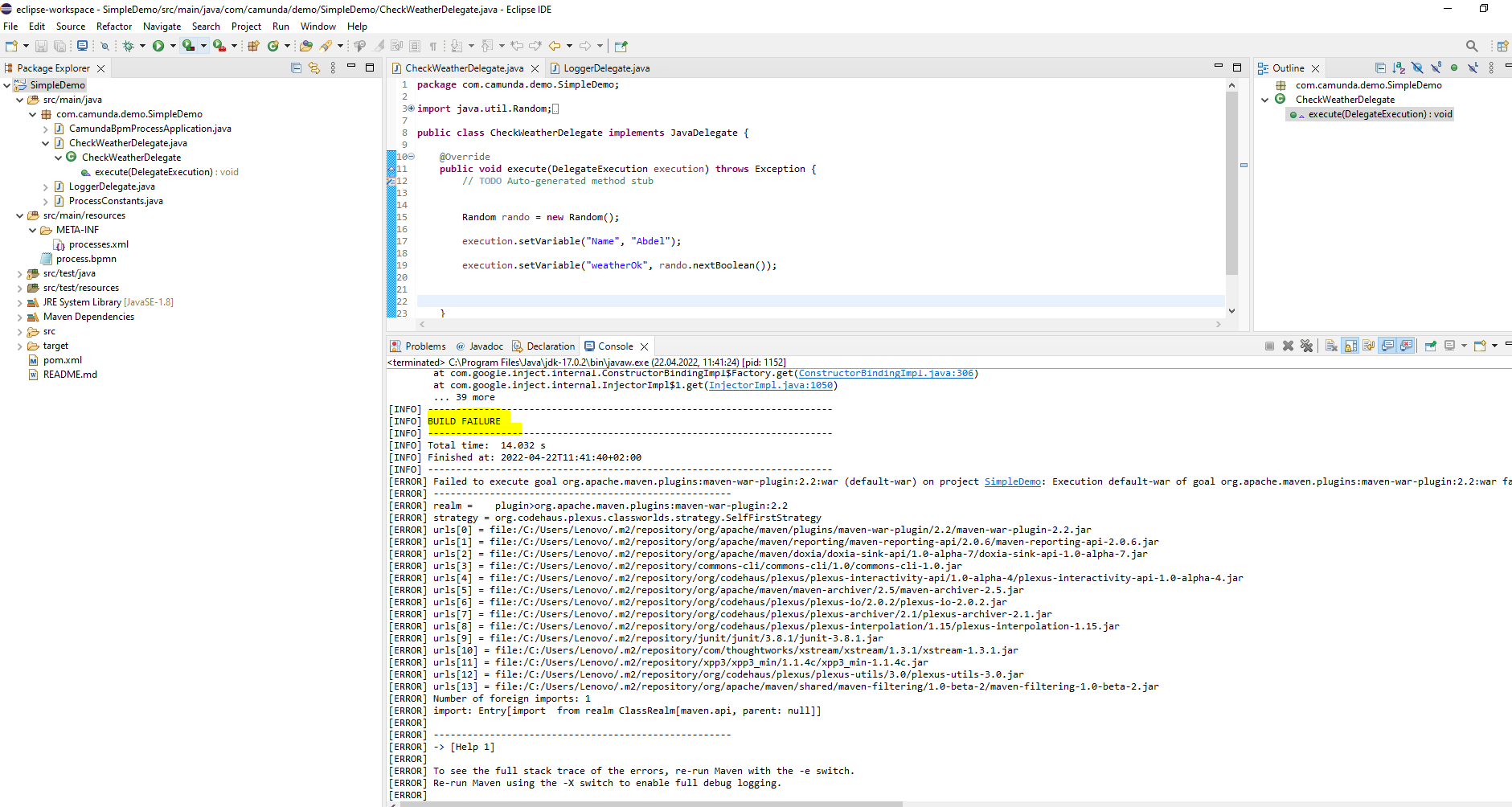

Can you show the actual error message?

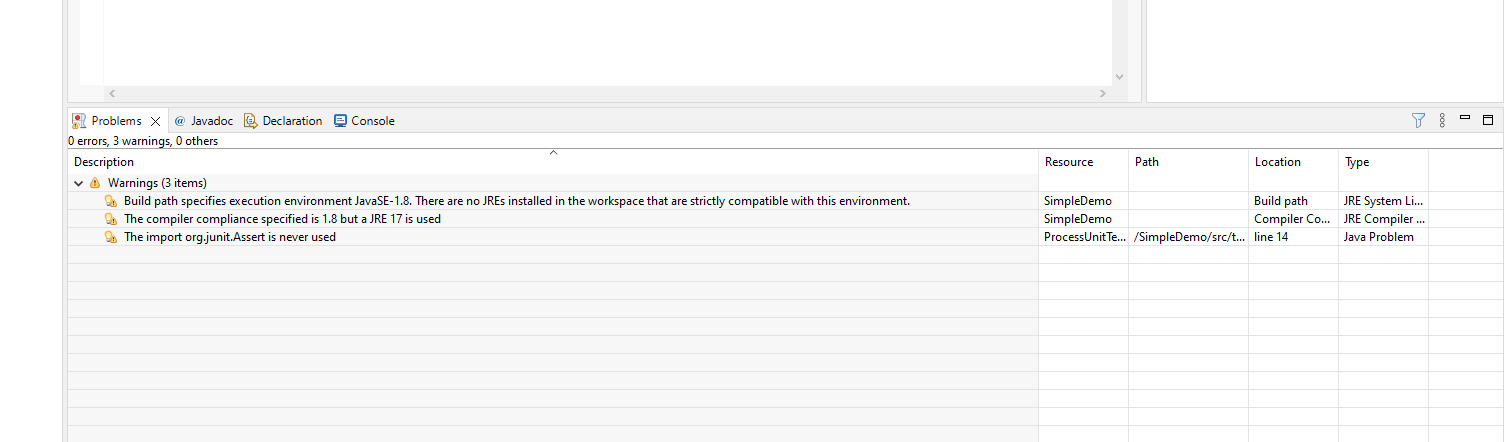

Hi @chahramane_hafid ,
the problem shown in the screenshot does not seem to come from Camunda rather than your Injector.
Please have a look here: java - Error injecting: org.apache.maven.plugin.war.WarMojo - Stack Overflow
Jonathan
Thank you @jonathan.lukas The problem got resolved after manually configuring one of the recent war plug-ins in POM.xml.
