Notify entire process has completed or not

Camunda 8 Topics
1

Hi Team,

I’ve created a façade API to start my process which has 3-4 tasks. is there any way to wait until entire process(4 tasks) gets completed before returning API response.

Thanks,
Phani

2

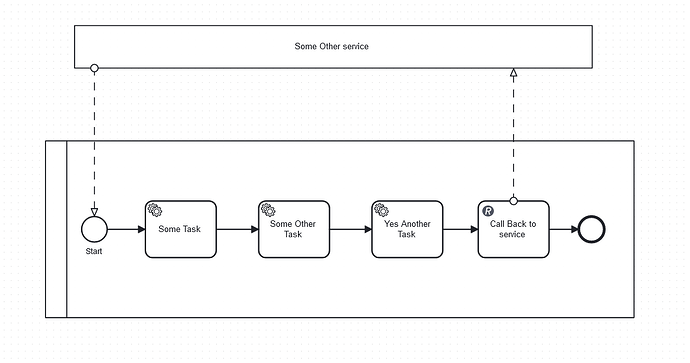

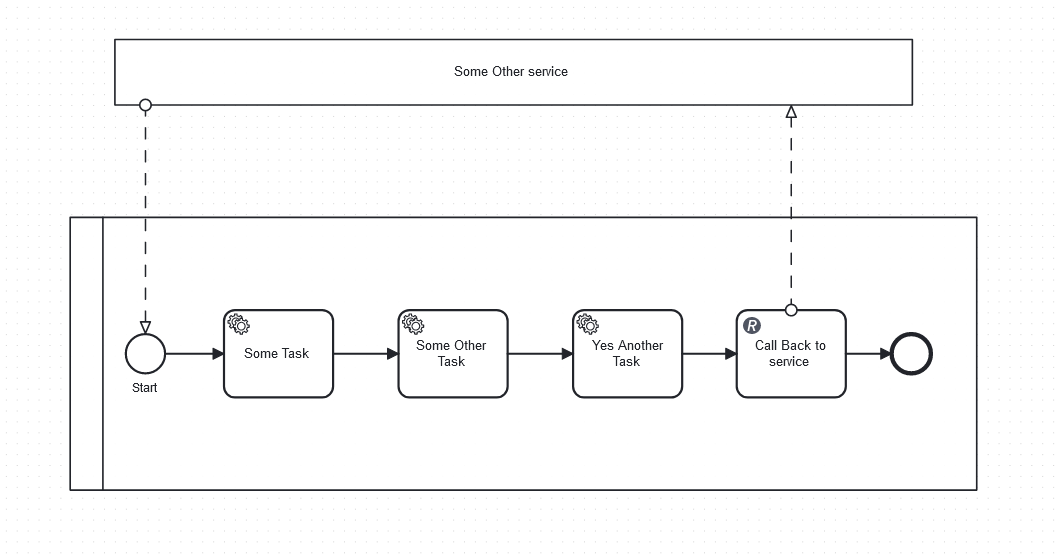

An easy option might be to create an contactable endpoint in your API facade that waits for a request to come back from the engine saying it’s finished.
LIke this:

image1063×560 23.3 KB

1 Like
3

Thank you. I’m calling this below snippet from my controller class. could you please provide any reference/code snippet to handle waiting.

    ProcessInstanceEvent processInstance =zeebeClient
        .newCreateInstanceCommand()
        .bpmnProcessId(PROCESS_DISPATCH)
        .latestVersion()
        .variables(processVariables)
        .send().join();
4

You wouldn’t need to write any Camunda specific code for this.
Just extend your current applcation to accept an incoming REST request and Camunda 8 can then make that request using a Camunda 8 Connector.

For instance if you’re using a springboot application you could just follow this tutorial on creating a rest endpoint

1 Like
5

The problem is this subprocess can be called from my facade API and as well as other parent process. so ideally i will not be able to check for other incoming rest event(i mean i can’t add any other task to the existing model) . so… that’s where we got stuck. is there anyway we can handle from the background through code in the facade API like listening to processInstance etc

6

The other option would be to have your facade api poll Zeebe in intervals checking if the process instance has finished.

1 Like
7

any inbuild method to check process has finished or not? or any Zeebe API to hit

8

There’s an Operate API that you can use

1 Like
9

Hi @phani9613,

here is an example that may fit to your use case as well:camunda-8-examples/synchronous-response-springboot at main · camunda-community-hub/camunda-8-examples · GitHub

The client uses a unique job worker ID to get notified when the job with the matching topic will be activated. It uses asynchronous java programming in the client to achieve this even on a high load.

Hope this helps, Ingo

2 Likes
10

Thanks Ingo. will try this out.

11

Thanks Ingo. this reference helped us. Thanks a ton.

1 Like
12
