Passing an array as processVariable

Camunda 7 Topics Discussion & Questions
1

Hi all,

I would need to specify a property as array of objects in the rest api processVariables…

I’d like to put an array of Objects each with its own fields (fileName, mimeType etc) but I could get only this:

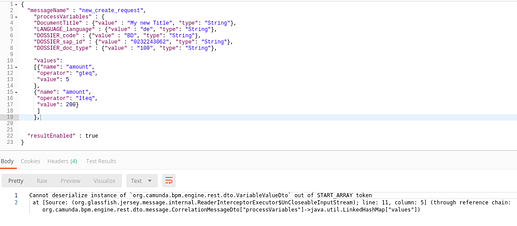

image928×407 75.4 KB

:disappointed_relieved:

Is there a way to get something like that?

Thank you in advance,
Bye
Fabio

2

What API is that you’re using? You should be able to use json serialization data format to put a process variable that can then be deserialized later. Something like,

curl --location --request PUT 'http://localhost:8080/engine-rest/process-instance/d41aa447-8f2c-11ea-9ac8-0242ac110002/variables/testvar' \
     --header 'Content-Type: application/json' \
     --data-raw '{
         "type": "Object",
         "valueInfo" : {
             "objectTypeName": "java.util.ArrayList",
             "serializationDataFormat": "application/json"
         },
         "value": "[{\"name\": \"amount\", \"operator\":\"gteq\", \"value\": 5 }, {\"name\": \"amount\", \"operator\":\"lteq\", \"value\": 200 }]"
     }'

For more info on working with spin dataformats, see here.
