Readonly text field

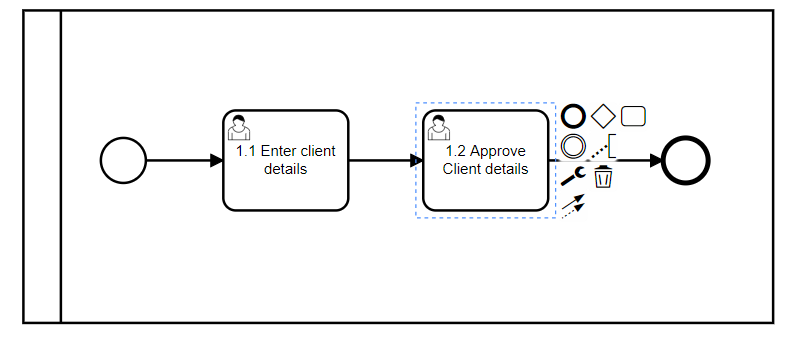

So i have reacted BPMN diagram like this

I have created form to get client details when i submit it i want the approver to only see the client details not to edit them can any one tell me how to do that. the form fields are f name, l name, age and experience.

hoping a simple solution

Hi did anyone figure this out??

Hi @Parth_Datwani

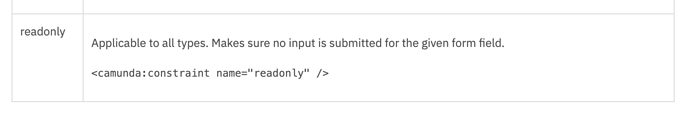

Have you tried to follow the documentation User Task Forms | docs.camunda.org?

I am using camunda forms and the code is in JSON.

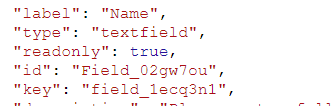

i tried doing

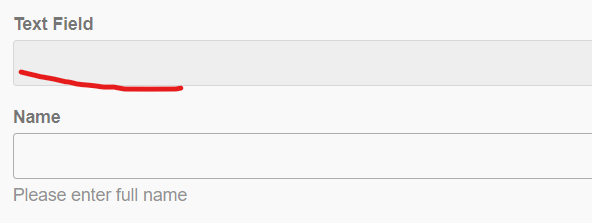

but no result, so i decided to try if i can set a default value in that field so it will be basically read only

but I haven’t found a way to keep a default value

What if you give it a try with "disabled": true?

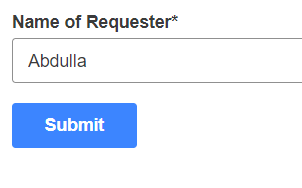

yes it worked. Can u tell me how i can keep a default value from previous form into this like if i enter



how can i get selected name

here as default

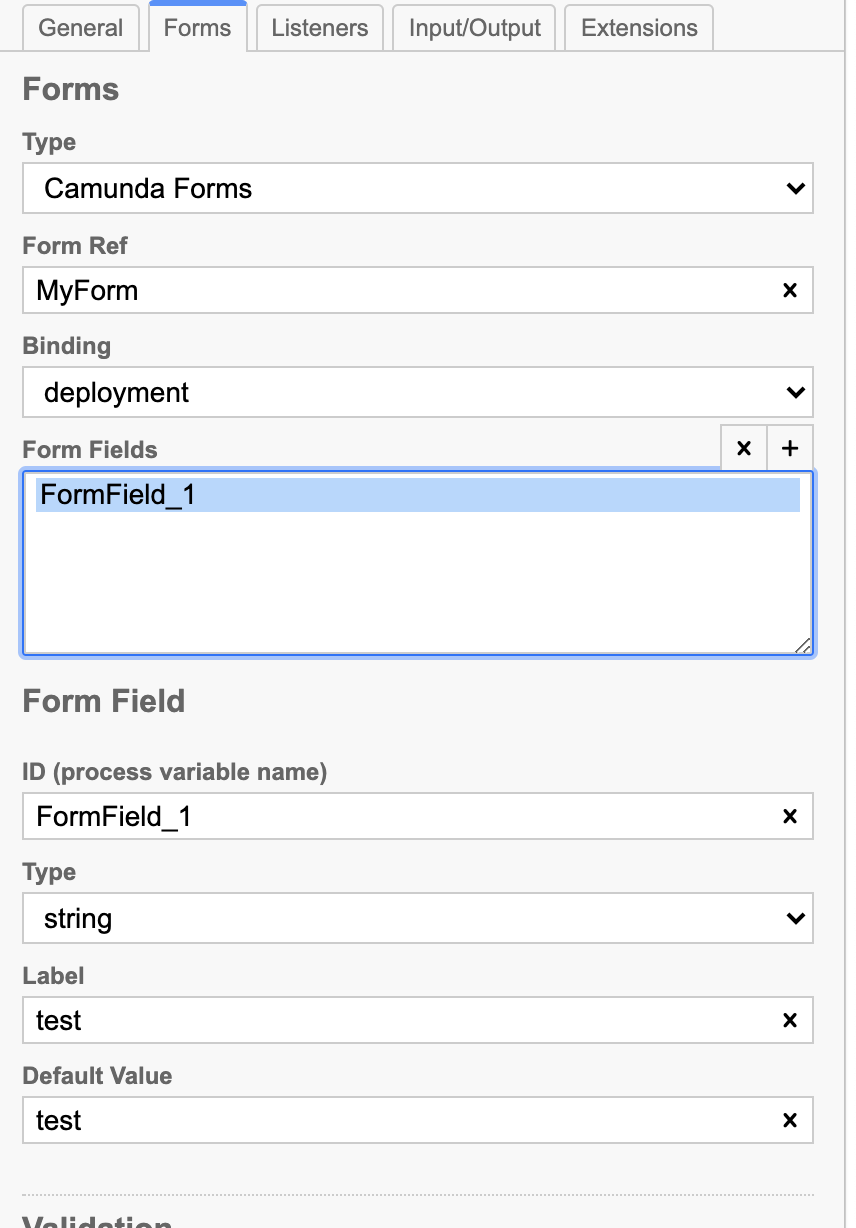

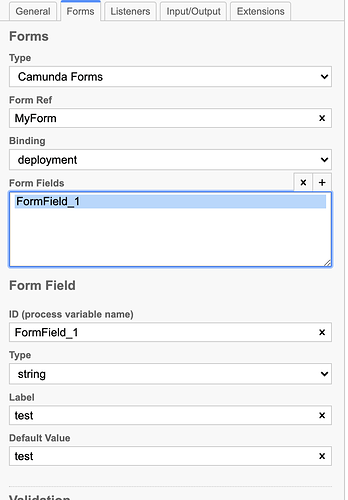

I created the simplest example for you to demonstrate.
Basically, the steps are the following:

  1. Create a form field variable in the first coach

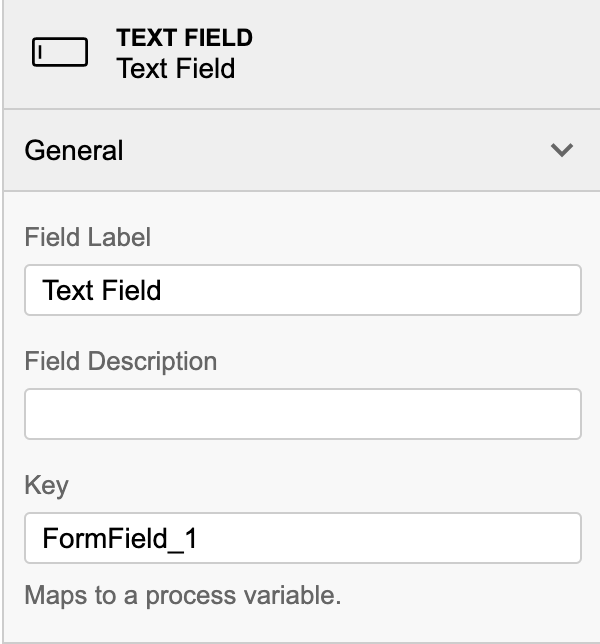

  2. Use it in the form of the second coach(Key)

See attached.form_1.form (233 Bytes)
diagram_1.bpmn (3.4 KB)
form_3.form (530 Bytes)

Yes i figured out to do it without the plugin we can change the value of key in the json. And wotks the same. Thank you u have helped me learn a lot today. If any future probls will be back

You’re welcome. Please mark one of the replies as a Solution so the community can see that the questions were answered.

Hi @Parth_Datwani and @Alex_Voloshyn,

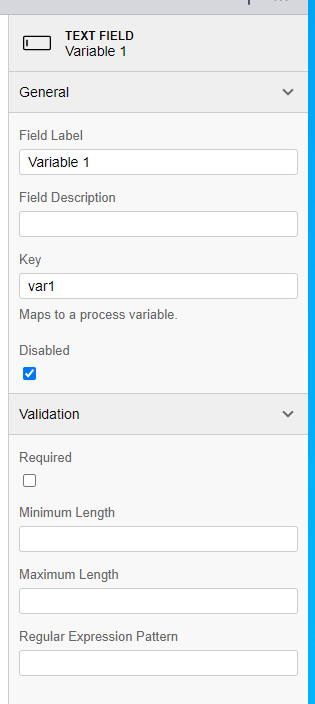

maybe a little bit too late with this hint: the last Alpha-version of the modeler supports disabled form fields out of the box:

You can download the version here (select 5.0.0-alpha.1): Camunda Download Center -

And read more about the changes here: Camunda Modeler 5.0.0-alpha.0 Released - Camunda

Hope this helps, Ingo
