Remote Archetype Catalog config with Camunda

Camunda 7 Topics Discussion & Questions
1

Dear Team,

I have tried to configure Camunda Remote Archetype Catalog in Eclipse Version: 2022-06 (4.24.0). getting below message and also not able to find the Camunda related libraries / referenes while creating new Maven Project.

Tried both URLs, but getting message as “Remote catolog is Empty”
https://app.camunda.com/nexus/content/repositories/camunda-bpm/
https://artifacts.camunda.com/artifactory/camunda-bpm/

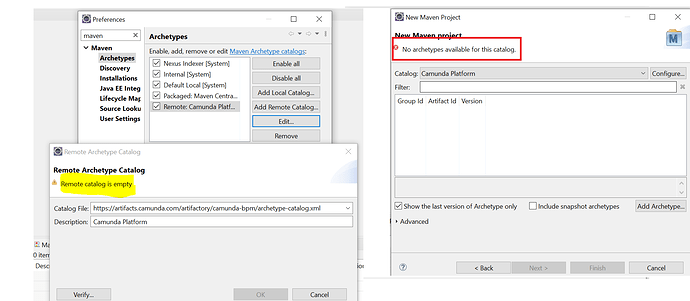

Screenshot for your reference,

image907×796 37 KB

Kindly suggest me, how to resolve this error.

Thanks & Regards,
Prakash R.

2

Hi Prakash

this link should work:
https://artifacts.camunda.com/artifactory/camunda-bpm/archetype-catalog.xml

3

Thanks Stephan for sharing the detail. but still I am getting the same error message.

image1914×837 63.5 KB

4

It worked for me. Have you tried opening the URL in your web browser?
Maybe, you’ve some security settings on your machine or your network preventing you from accessing the resource.


5

Hello Stephan,

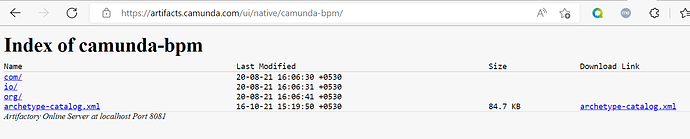

Yes, I can able to open this URL from browser, Below screenshot for your reference.

image1613×326 34.6 KB

Thanks & Regards,
Prakash R.

6

Hi Prakash,

This seems odd. I don’t know where the error may be.
If you can download the archetype-catalog.xml, and if you entered the download link as a URL in eclipse, it should work.

Have you tried using plain maven?
Therefore, you’d need to change the maven settings.xml
https://maven.apache.org/archetype/maven-archetype-plugin/generate-mojo.html#archetypeCatalog
Then you can execute maven:

mvn archetype:generate
7

Hello @StephanHaarmann,

Thanks for your suggestions :slightly_smiling_face:

It’s true. It should work even after downloaded the archetype-catalog.xml. But no luck for me. Still it’s not working and not able to move forward.

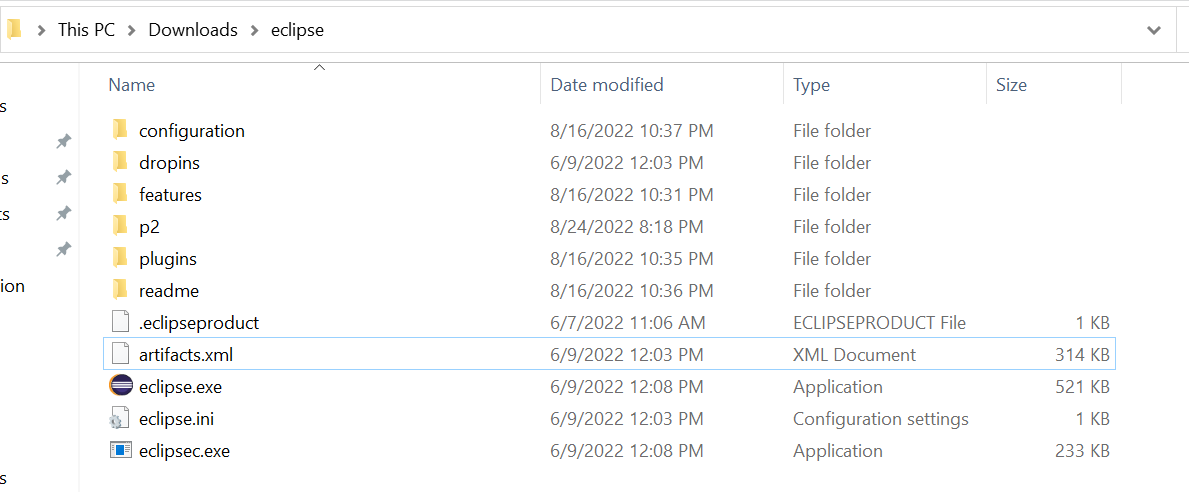

Also I can see the eclipse downloaded folder, but I couldn’t find the settings.xml instead I can able to see artifacts.xml.

image1189×492 31 KB

Thanks,
Prakash R.

8

Hi Prakash,

Maven stores its settings in a file called settings.xml. It is usually located in the .m2 folder in your home directory, i.e., for Windows users: C:\Users\<your_windows_user>\.m2
Instead of adding the archetype-catalog via eclipse, you can try adding it directly and running maven from the command line.
See the maven documentation for details on how to add a catalog. In short, it should look something like this:

<?xml version="1.0" encoding="UTF-8"?>
<settings xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0 http://maven.apache.org/xsd/settings-1.2.0.xsd" xmlns="http://maven.apache.org/SETTINGS/1.2.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
  <profiles>
    <profile>
      <id>default</id>
      <repositories>
        <repository>
          <id>camunda-archetypes</id>
          <url>https://artifacts.camunda.com/artifactory/camunda-bpm/</url>
        </repository>
      </repositories>
    </profile>
  </profiles>
  <activeProfiles>
    <activeProfile>default</activeProfile>
  </activeProfiles>
</settings>

Once you’ve done that, you can run maven from the command line:

mvn archetype:generate -Dfilter=camunda

If this works then your issue is caused by Eclipse.

9

Hi @StephanHaarmann

Sure, Let me check this configuration. Thank you.

Thanks & Regards,
Prakash R.

10

I have the same problem for all the catalogs, since eclipse 2022 06 it does not read the catalogs, whether they are remote or local. I’m a bit desperate to fix this problem.
