Rest Connector, Error Boundary and 404

[ivicac]

Hi,
I built a new connector based on the REST connector. When I call the configured endpoint and get 404, I want my flow to continue to execute, but instead, it does not continue and fails. I added Error Boundary, but it does not help. How should I configure the connector so the flow continues executing the next task when the response status is 404?

[cpbpm]

If it fails, then error handling is not properly implemented.

There are few links you can refer:

1.REST connector | Camunda 8 Docs
2.Tutorial: Build a Custom Connector Using the Connector SDK | Camunda
3. https://camunda.com/blog/2022/11/how-to-build-camunda-platform-8-connector/

[ivicac]

I tried with a generic REST connector, and the result is the same:

The first task calls an endpoint that returns 404.

I am not sure how to set up the Error Boundary event so that the flow ends successfully.

[cpbpm]

Please take a look at the thread, you might be missing few variables.

Error Handling in Rest Connectors

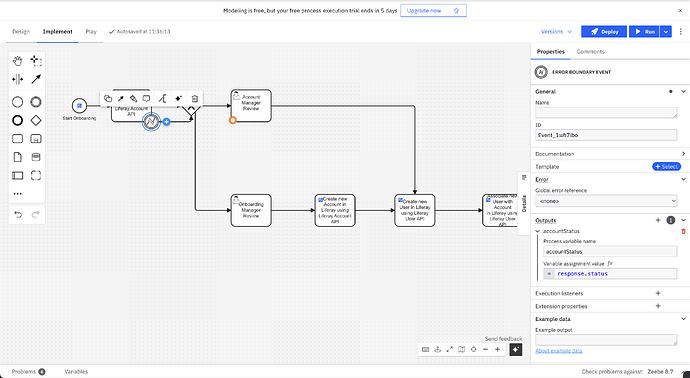

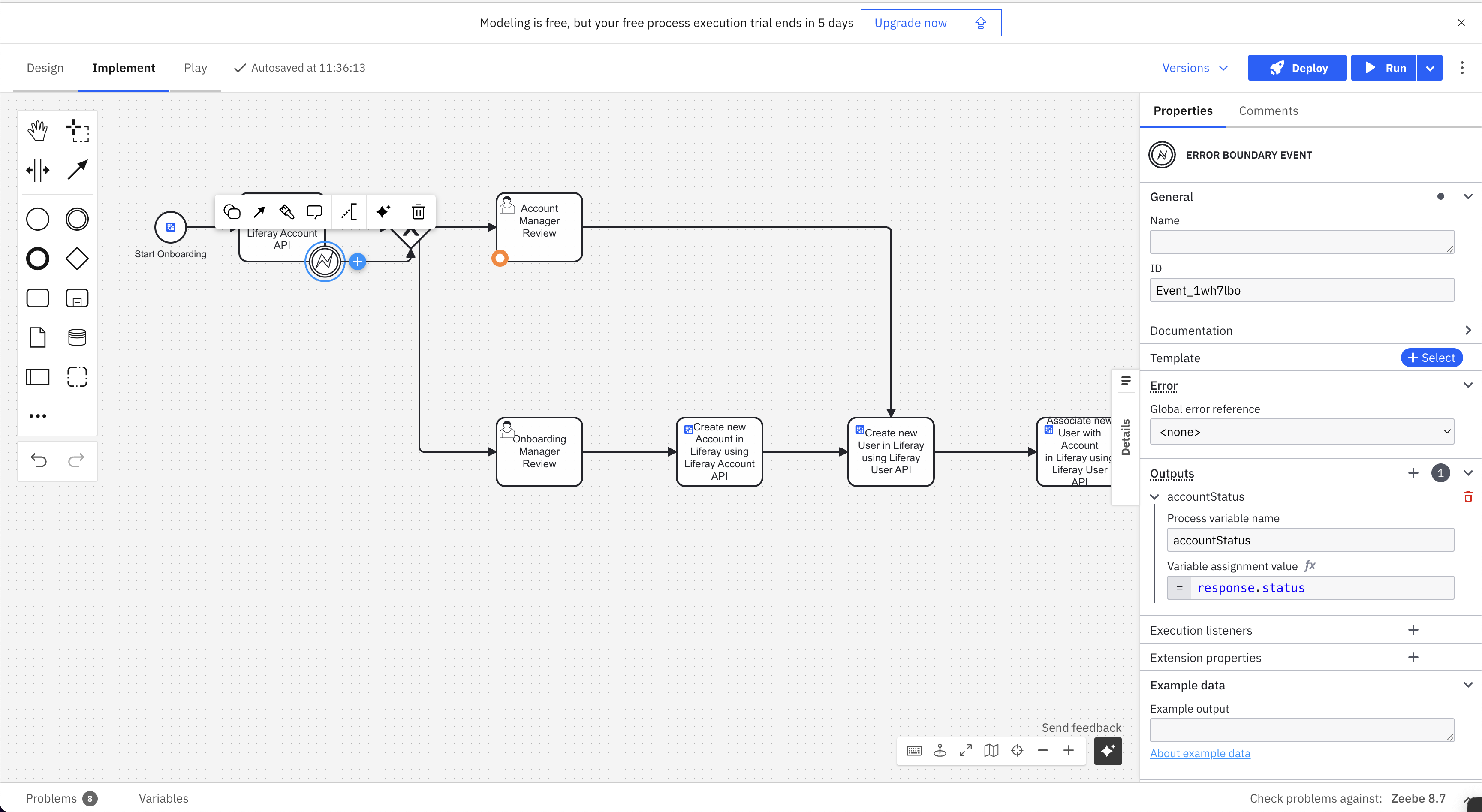

If what you say were true and in fact we could not use a process variable in the error expression block, the BPMN in the attached image would not be fulfilled, on another level of example I compared 2 variables which I assigned the same value on purpose and I passed a message that would be assigned to an error boundary event output variable. [image] [image] [image] [image]

[ivicac]

Hi @cpbpm, I got it working. I didn’t write the error processing logic correctly.
Thank you for your help

[cpbpm]

Glad to hear that issue got resolved.
