Hello!
I have met the issue linked to the usage of boundary event.

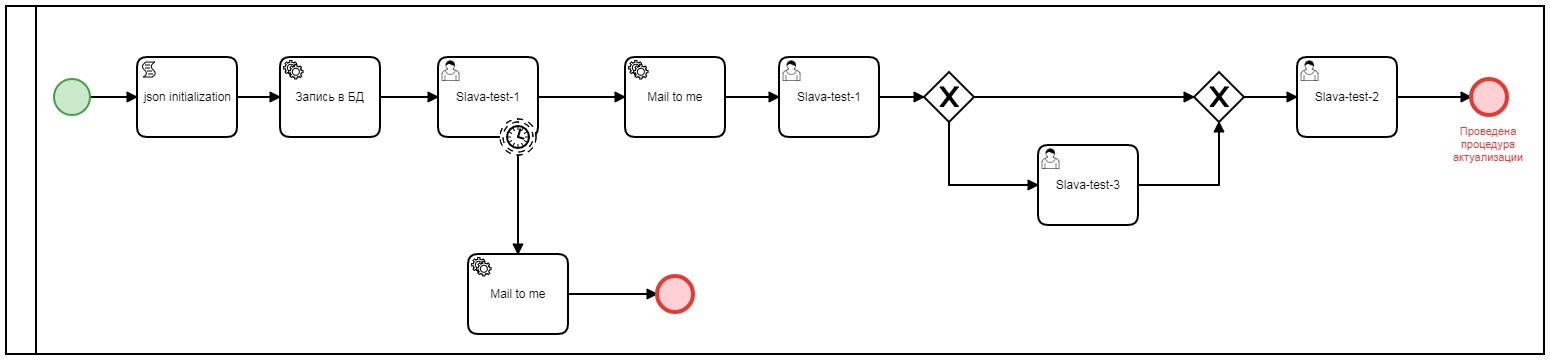

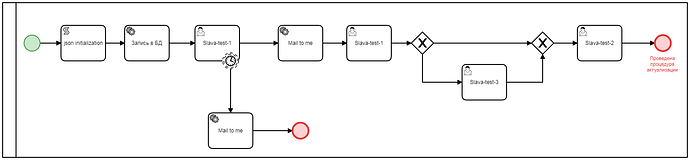

My process looks the following:
There are two same service tasks “Mail to me” with Java Class ru.alfabank.refdata.kib.listeners.mail.SendMailByLoginDelegate but in case of straight flow the engine works cleanly, and the one started with boundary event ends with an error:
> org.camunda.bpm.engine.ProcessEngineException: ENGINE-09008 Exception while instantiating class 'ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate': ENGINE-09017 Cannot load class 'ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate': ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate
at org.camunda.bpm.engine.impl.util.EngineUtilLogger.exceptionWhileInstantiatingClass(EngineUtilLogger.java:81)
at org.camunda.bpm.engine.impl.util.ClassDelegateUtil.instantiateDelegate(ClassDelegateUtil.java:53)
at org.camunda.bpm.engine.impl.bpmn.listener.ClassDelegateExecutionListener.getExecutionListenerInstance(ClassDelegateExecutionListener.java:59)
at org.camunda.bpm.engine.impl.bpmn.listener.ClassDelegateExecutionListener.notify(ClassDelegateExecutionListener.java:51)
at org.camunda.bpm.engine.impl.bpmn.listener.ClassDelegateExecutionListener.notify(ClassDelegateExecutionListener.java:37)
at org.camunda.bpm.engine.impl.core.instance.CoreExecution.invokeListener(CoreExecution.java:100)
at org.camunda.bpm.engine.impl.core.operation.AbstractEventAtomicOperation.execute(AbstractEventAtomicOperation.java:54)
at org.camunda.bpm.engine.impl.interceptor.AtomicOperationInvocation.execute(AtomicOperationInvocation.java:95)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.invokeNext(CommandInvocationContext.java:127)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performNext(CommandInvocationContext.java:107)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performOperation(CommandInvocationContext.java:82)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performOperation(CommandInvocationContext.java:72)
at org.camunda.bpm.engine.impl.persistence.entity.ExecutionEntity.performOperationSync(ExecutionEntity.java:649)
at org.camunda.bpm.engine.impl.persistence.entity.ExecutionEntity.performOperationSync(ExecutionEntity.java:624)
at org.camunda.bpm.engine.impl.core.operation.AbstractEventAtomicOperation.execute(AbstractEventAtomicOperation.java:60)
at org.camunda.bpm.engine.impl.interceptor.AtomicOperationInvocation.execute(AtomicOperationInvocation.java:95)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.invokeNext(CommandInvocationContext.java:127)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performNext(CommandInvocationContext.java:107)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performOperation(CommandInvocationContext.java:82)
at org.camunda.bpm.engine.impl.persistence.entity.ExecutionEntity.performOperation(ExecutionEntity.java:640)
at org.camunda.bpm.engine.impl.persistence.entity.ExecutionEntity.performOperation(ExecutionEntity.java:614)
at org.camunda.bpm.engine.impl.pvm.runtime.operation.PvmAtomicOperationActivityStartCreateScope.scopeCreated(PvmAtomicOperationActivityStartCreateScope.java:42)
at org.camunda.bpm.engine.impl.pvm.runtime.operation.PvmAtomicOperationCreateScope.execute(PvmAtomicOperationCreateScope.java:53)
at org.camunda.bpm.engine.impl.pvm.runtime.operation.PvmAtomicOperationCreateScope.execute(PvmAtomicOperationCreateScope.java:27)
at org.camunda.bpm.engine.impl.interceptor.AtomicOperationInvocation.execute(AtomicOperationInvocation.java:95)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.invokeNext(CommandInvocationContext.java:127)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performNext(CommandInvocationContext.java:114)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performOperation(CommandInvocationContext.java:82)
at org.camunda.bpm.engine.impl.interceptor.CommandInvocationContext.performOperation(CommandInvocationContext.java:72)
at org.camunda.bpm.engine.impl.jobexecutor.AsyncContinuationJobHandler.execute(AsyncContinuationJobHandler.java:80)
at org.camunda.bpm.engine.impl.jobexecutor.AsyncContinuationJobHandler.execute(AsyncContinuationJobHandler.java:39)
at org.camunda.bpm.engine.impl.persistence.entity.JobEntity.execute(JobEntity.java:138)
at org.camunda.bpm.engine.impl.cmd.ExecuteJobsCmd.execute(ExecuteJobsCmd.java:102)
at org.camunda.bpm.engine.impl.cmd.ExecuteJobsCmd.execute(ExecuteJobsCmd.java:39)
at org.camunda.bpm.engine.impl.interceptor.CommandExecutorImpl.execute(CommandExecutorImpl.java:27)
at org.camunda.bpm.engine.impl.interceptor.CommandContextInterceptor.execute(CommandContextInterceptor.java:106)
at org.camunda.bpm.engine.impl.interceptor.ProcessApplicationContextInterceptor.execute(ProcessApplicationContextInterceptor.java:69)
at org.camunda.bpm.engine.impl.interceptor.LogInterceptor.execute(LogInterceptor.java:32)
at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobHelper.executeJob(ExecuteJobHelper.java:50)
at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobHelper.executeJob(ExecuteJobHelper.java:43)
at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobsRunnable.executeJob(ExecuteJobsRunnable.java:91)
at org.camunda.bpm.engine.impl.jobexecutor.ExecuteJobsRunnable.run(ExecuteJobsRunnable.java:60)
at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
at java.lang.Thread.run(Thread.java:748)
Caused by: org.camunda.bpm.engine.ClassLoadingException: ENGINE-09017 Cannot load class 'ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate': ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate
at org.camunda.bpm.engine.impl.util.EngineUtilLogger.classLoadingException(EngineUtilLogger.java:138)
at org.camunda.bpm.engine.impl.util.ReflectUtil.loadClass(ReflectUtil.java:110)
at org.camunda.bpm.engine.impl.util.ClassDelegateUtil.instantiateDelegate(ClassDelegateUtil.java:45)
... 43 more
Caused by: java.lang.ClassNotFoundException: ru.alfabank.refdata.kib.listeners.util.ConfigsToExecutionDelegate
at java.net.URLClassLoader.findClass(URLClassLoader.java:381)
at java.lang.ClassLoader.loadClass(ClassLoader.java:424)
at java.lang.ClassLoader.loadClass(ClassLoader.java:357)
at java.lang.Class.forName0(Native Method)
at java.lang.Class.forName(Class.java:348)
at org.camunda.bpm.engine.impl.util.ReflectUtil.loadClass(ReflectUtil.java:87)
... 44 more
What can be a reason of such behavior?
The process is here: slava_test.bpmn (20.1 KB)
