To start a process in Camunda platform 8 saas via API call

Camunda 8 Topics Discussion & Questions
,
1

is there a way I can start a process by an API call currently I am starting the process like this

image903×703 29.5 KB

How to do it via an API call?

2

You could use a webhook on the start event. That would give you a REST api that you could start.
You can read how to do it here: Start a Camunda Platform 8 Process via REST with Webhooks | Camunda

3

Hi @savi003,

additional to @Niall’s hint, you can use any client and send the createProcessInstance command: Zeebe API (gRPC) | Camunda Platform 8 Docs.

Here is an example for the java client: Create a process instance | Camunda Platform 8 Docs
and here for the command line client zbctl: Getting started with the CLI client | Camunda Platform 8 Docs

Hope this helps, Ingo

4

I have a bpmn deployed in camunda 8 saas, What i want is i want to start the process say from postman by sending the body , this is the example from camunda 8 camunda-8-code-studio/src/JavaCloudWorker at main · camunda-community-hub/camunda-8-code-studio · GitHub
{
“person_uuid”: “Carl”,
“employment_category”: “critical infrastructure”,
“age”: 25
}

5

I was able to do the example explained in the link , but when added it another model it’s not working, can tell me what’s the issue? I will atach the details below

image770×603 30.1 KB

the request body needed to start the process is
{
“person_uuid”: “test2”,
“employment_category”: “critical infrastructure”,
“age”: 25
}

6

Gonna need a lot more information about what you’ve built and what’s going wrong before i can properly help you

7

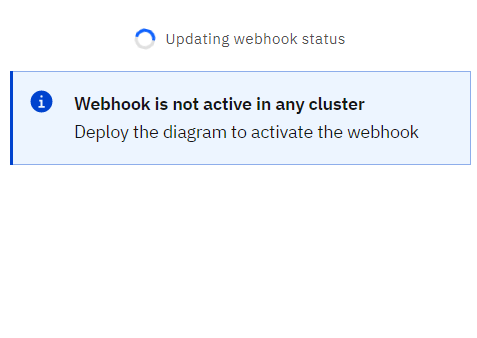

but web hook is not creating

8

can you tell me what all details you need?

9

You need to deploy the diagram to activate the webhook

10

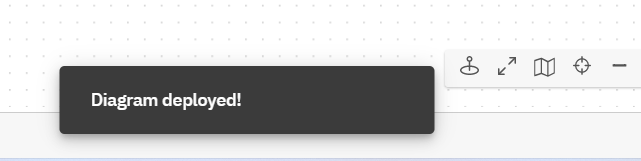

diagram is deploying

11

I added the files in the sample GitHub - camunda-community-hub/camunda-8-code-studio: This repository contains all assets for the Camunda Platform 8 related Code Studio events to my project in camunda, and the change is I added a webhook to start the process, I am not sure is that the correct way, The data needed to start the process via the Camunda UI is
{
“person_uuid”: “test2”,
“employment_category”: “critical infrastructure”,
“age”: 25
}
but after deploying it webhook is not starting
