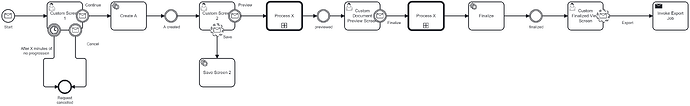

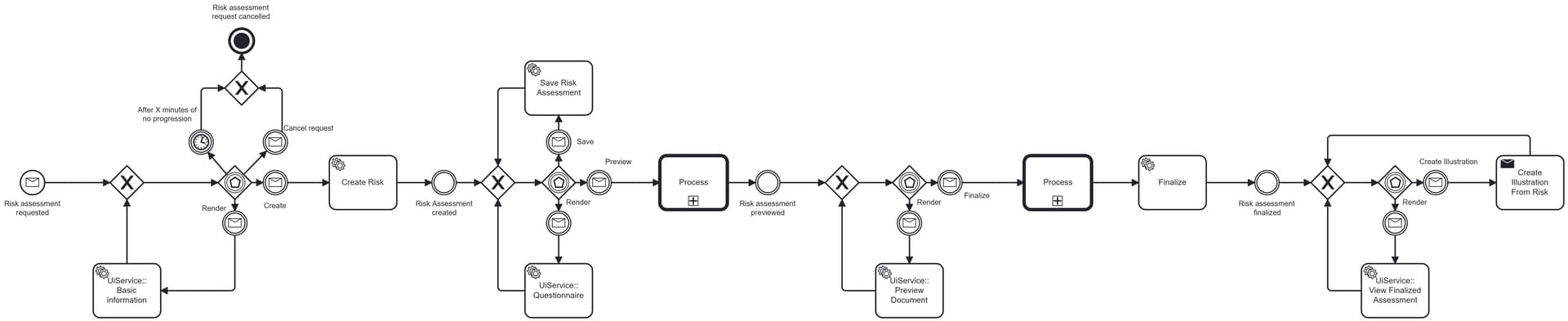

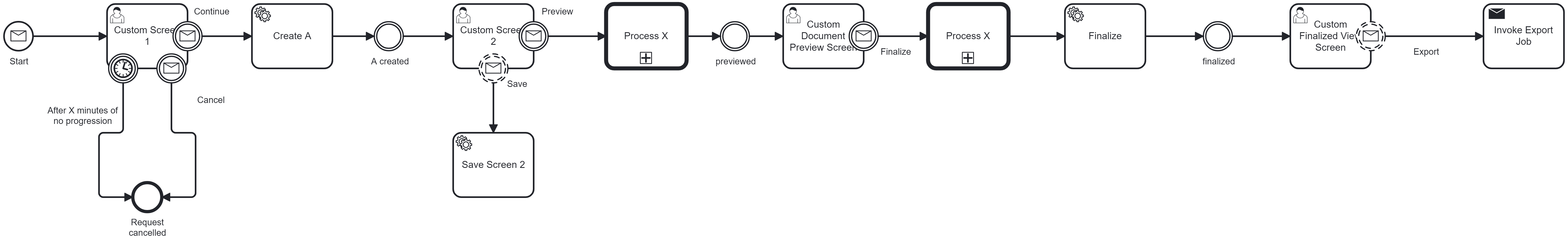

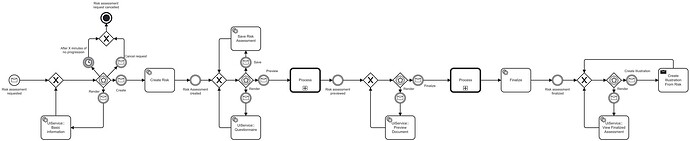

I want to control the user flow in my application using BPMN. Attached is my current BPMN diagram design, which combines service and user tasks. I’m developing a custom web application where the sequence of input screens needs to be configurable.
Here’s how I plan to achieve this:
Upon receiving a request, my backend will instantiate the appropriate process diagram. Based on the next user task (configured with an external form reference via Zeebe/Worker), the backend will execute the task and render the corresponding UI using the returned JSON data. For task transitions, I am utilizing different boundary message events, which are triggered by action buttons on the rendered UI.
Challenges I’m Facing:
- I’m uncertain about which type of user task to use—Zeebe’s native user task or the soon-to-be-deprecated worker-based tasks with custom form references.
- While I can target specific types for service tasks, I’m unable to achieve similar targeting for user tasks based on a specific custom form reference.
- I’m questioning whether this approach is fully achievable with BPMN alone or if adjustments are required.
I would appreciate your feedback and suggestions on addressing these issues.
