Zeebe Message Boundary Event

Camunda 8 Topics Discussion & Questions
1

hi
we use Boundary Event in our bpmn

boundary event
boundary event721Ă—562 24.2 KB

i have few question

  1. after i publish newPublishMessageCommand with message name and correlationKey can i listen to this event?
  2. how i know in notify-flow-end on which sequence i am? there is outputs for each sequence but how can i get them in the worker?

Thanks

1 Like
2

Hi @CMX ,

  1. After calling the publishMessage gRPC API, you get nothing back except an acknowledgement from the gateway that the message has been received by the system. You get a unique key back that represents the message publish event.

  2. You cannot know how you arrived there in the worker. If you need to know that, you could put the same service task three times in the model (same task type, and hence same worker), with distinct custom headers per instance. Then in the worker you can examine the custom header.

Hope this helps,
Josh

3

Hi @jwulf,
thanks for ur answer!

  1. i meant after i publishMessage then i need to do some action in the code. where should i put this code?
    for example
    i have a flow and i want that if i publish msg “cancel-flow” its will stop the current flow and i will delete all data from db

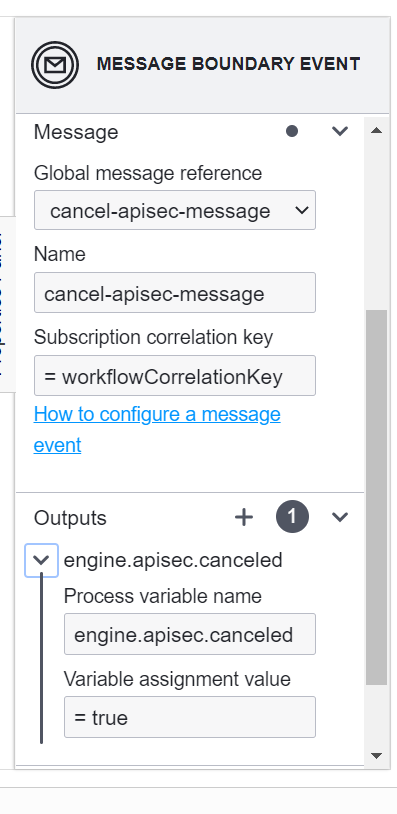

  2. where can i use the outputs variable?

    image397Ă—814 39 KB

4

If you mean the message that flows to the notify-flow-end service task, then your clean-up code goes into the notify-flow-end service task job worker.

You should be able to use the output variable in the next node in the flow. That’s an approach to specialising the pathway that I didn’t think of. It should work to examine the engine.apisec.canceled variable in the notify-flow-end job worker, and do the clean-up code if it is true.

5

Hi @jwulf,
Thanks for ur answers!!

6

can i do handler like this that will listen to boundary event?
@ZeebeWorker(type = “cancel-apisec-message”, autoComplete = true)
public void cancelTask(final JobClient client, final ActivatedJob job) {
}

when i publish message event its will catch it?

7

Message catches take place in the engine. The only way to do what you want to do here, is to do a boundary message event that flows into a service task. Your code then becomes the handler for jobs of that service task type.

Josh
